BS Shackle - Small Dee

Design: A range of high quality UK manufactured Higher Tensile steel dee shackles
Material:
Marking:
Safety Factor: 4:1
Finish:
Standard:

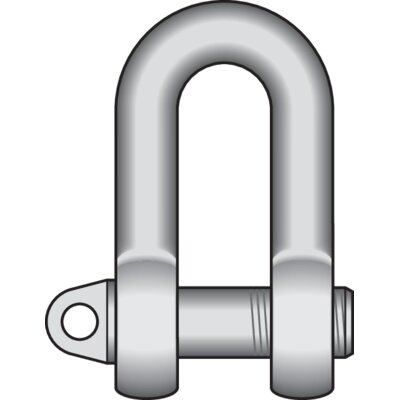

101_225mm

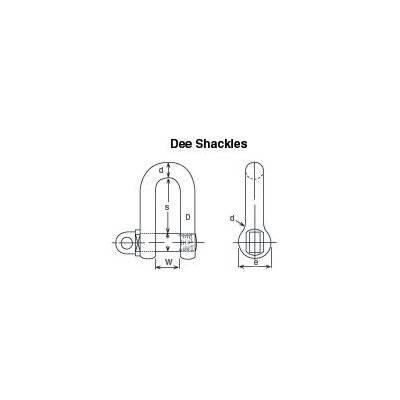

SMALL DEE DRAW
ALTERNATIVE PINS DRAW
101_225mm
SMALL DEE DRAW
ALTERNATIVE PINS DRAW
Select a row from the table below, then click the add to quote button
WLL
Ton		 Stockcode D (mm) W (mm) S (mm) e (mm) Weight
kg		 CAD
0.3 3/8 3/8 7/8 3/4 0.06
0.6 1/2 5/8 1.3/8 1 0.15
1 05A0810 5/8 7/8 1.7/8 1.1/4 0.33
1.75 3/4 1 2.1/4 1.1/2 0.61
2.5 7/8 1.1/4 2.3/4 1.3/4 0.93
3.5 1 1.3/8 3.1/4 2 1.8
4.5 1.1/8 1.1/2 3.5/8 2.1/4 2.15
5.5 1.1/4 1.3/4 4.1/8 2.1/2 3.02
7 1.3/8 1.7/8 4.1/2 2.3/4 4.2
8 1.1/2 2.1/8 5 3 5.34
10.75 05A0850 1.3/4 2.3/8 5.1/2 3.1/2 8.36
13 1.7/8 2.1/2 5.7/8 3.3/4 9.35
14.75 2 2.3/4 6.3/8 4 12.39
16.75 2.1/8 2.7/8 6.3/4 4.1/4 15.3
19 2.1/4 3 7.1/4 4.1/2 18.4
20 2.3/8 3.1/4 7.3/4 4.3/4 23.6

Download CAD
