Design:A range of high quality UK manufactured Higher Tensile steel bow shackles
Material:
Marking:
Safety Factor:
4:1
Finish:
Standard:

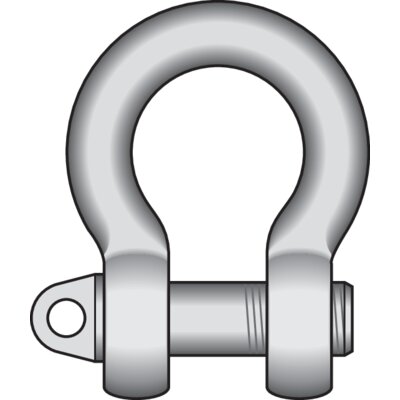

201_225mm

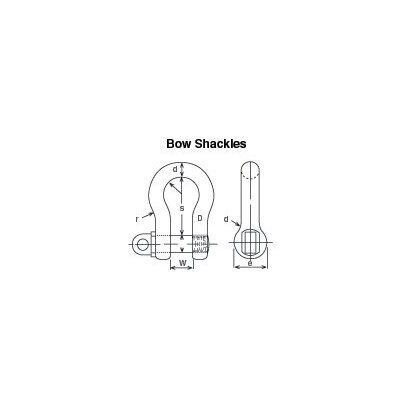

BOW SHACKLES DRAW
ALTERNATIVE PINS DRAW
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
D (mm) W (mm) S (mm) e (mm) Weight
kg
05A1120 0.45 1/2 5/8 1.5/8 1 0.18
05A1130 0.75 5/8 7/8 2.1/8 1.1/4 0.34
05A1170 1.25 3/4 1.1/8 2.3/4 1.1/2 0.65
05A1180 2 7/8 1.3/8 3.3/8 1.3/4 1.08
05A1200 2.75 1 1.5/8 3.7/8 2 1.8
05A1220 3.75 1.1/8 1.3/4 4.1/4 2.1/4 2.46
-- 4.75 1.1/4 2 4.7/8 2.1/2 3.47
05A1250 5.75 1.3/8 2.1/4 5.3/8 2.3/4 4.56
05A1260 7.25 1.1/2 2.1/2 6 3 6.07
05A1280 8.5 1.3/4 2.3/4 6.5/8 3.1/2 8.35
05A1300 9.5 1.7/8 3 7.3/8 3.3/4 11.81
05A1310 11.5 2 3.3/8 8.1/8 4 14.32
05A1330 13 2.1/8 3.5/8 8.3/4 4.1/4 17.03
05A1350 15 2.1/4 3.7/8 9.3/8 4.1/2 20
-- 18.5 2.1/2 4.1/8 10.1/8 5 30
