Powertex
  • Cr6+ Free

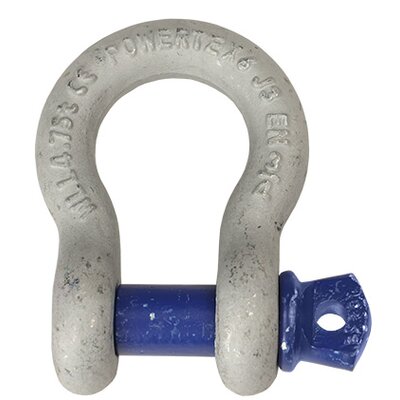

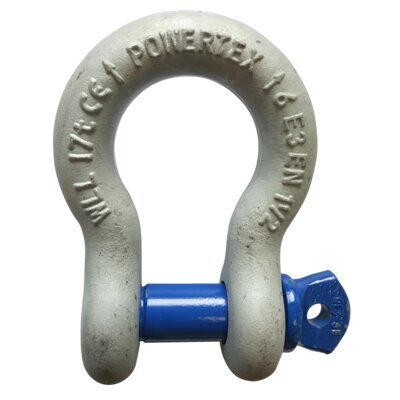

Bow type shackle PBSP is a high quality shackle intended for use in demanding environments.

It is supplied with a screw pin for quick and easy opening.

The shackle comply to EN 13889 and meets the performance requirements of US Federal Specification RR-C-271 Type IVA Class 2, Grade A.

Features:

  • Safe – All POWERTEX shackles are manufactured and tested in accordance to EN 13889
  • All bodies and screw pins marked with batch number for traceability
  • Larger sizes equipped with arrows to indicate 45 degrees to vertical
  • Raised pad for dedicated and easy individual ID (3,25 t and up)
  • The bow is forged in closed dies
  • All parts are made from alloy steel being quenched and tempered
  • All parts including screw pins and nuts are hot dip galvanized for long life
  • High quality hot dip galvanization process giving an exclusive mat grey finish
  • Screw pins are additionally painted in blue and red for quick and easy detection as  original POWERTEX parts
  • Multilanguage user manuals
  • Material: Forged alloy steel, supplied with alloy screw pin.
  • Marking: According to standard, CE-marked, POWERTEX (PT or PTEX) , WLL, size, grade and batch number.
  • Temperature range: -20°C up to +200°C
  • Finish: All parts hot dip galvanized. Bolt additional powder painted.
  • Standard: EN 13889
  • Safety factor: 6:1
  • Grade: 6
POWERTEX bow shackle PBSP (Bri pin), supplied with screw pin. According to EN 13889.

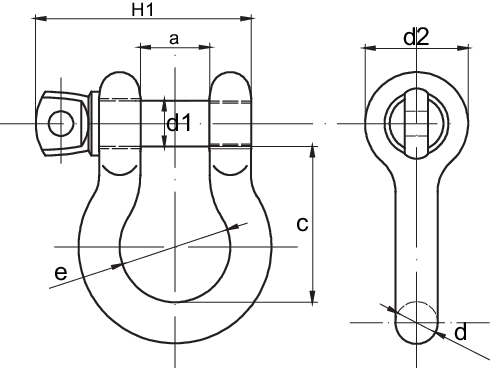

Bow Shackle POWERTEX PBSP measurements
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
Nominal size
In.
Pin Ø d1 a*
mm
c*
mm
d
mm
d2
mm
e
mm
H1
mm
Weight
kg
05A4190 1331 0,33 3/16 6,3 10 22,6 5 14,5 15,5 29 0,026
05A4200 1332 0,5 1/4 8 13 29 6,5 17,5 20 38 0,048
05A4205 1333 0,75 5/16 9,5 13,5 31 8 21 21,5 42,5 0,082
05A4210 1334 1 3/8 11,2 17 36,5 10 25 26,2 51,5 0,15
05A4220 1335 1,5 7/16 12,7 18,5 42,9 11,3 27 29,5 58 0,2
05A4230 1336 2 1/2 15,8 20,6 47,75 12,7 30,5 33,3 67 0,3
05A4240 1337 3,25 5/8 18,6 27 60 16 40 43 85 0,65
05A4250 1338 4,75 3/4 22 32 71,5 19 48 51 98,5 1,01
05A4260 1339 6,5 7/8 25 37 84,5 22 54 58 114 1,5
05A4270 1340 8,5 1 28 43,5 96,25 26,5 60 68,5 129,5 2,25
05A4280 1341 9,5 1-1/8 32 48 109 29 68 75 144 3,25
05A4300 1342 12 1-1/4 35 53 120,5 32 76 84 157 4,45
05A4310 1343 13,5 1-3/8 38 59 134 35 84 94 171 5,95
05A4320 1344 17 1-1/2 42 62 148,5 38 92 99 186 7,72
05A4330 1345 25 1-3/4 50 75 178 45 106 128 227 12,64
05A4340 1346 35 2 55 84 197,5 52 122 148 253 18,72
05A4350 1347 55 2-1/2 70 107 269,5 66 145 186 318 37
-- 85 3 80 130 325 76 165 205 382 58
*Tolerance: +/- 5%
