Powertex

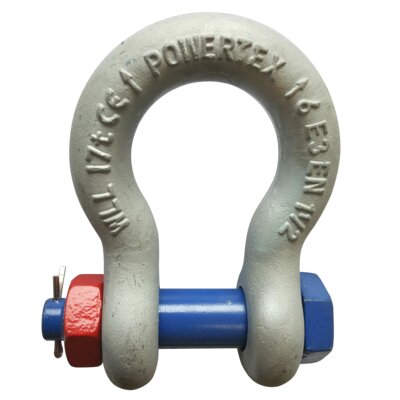

Bow type shackle PBSB is a high quality shackle intended for use in demanding environments.

It is supplied with a hexagon head safety bolt with nut and stainless steel cotter pin.

The shackle comply to EN 13889 and meets the performance requirements of US Federal Specification RR-C-271 Type IVA Class 3, Grade A.

Features:

  • Safe – All POWERTEX shackles are manufactured and tested in accordance to EN 13889
  • All bodies and bolts marked with batch number for traceability
  • Larger sizes equipped with arrows to indicate 45 degrees to vertical
  • Raised pad for dedicated and easy individual ID (3,25 t and up)
  • The bow is forged in closed dies
  • All parts are made from alloy steel being quenched and tempered
  • All parts including bolts and nuts are hot dip galvanized for long life
  • High quality hot dip galvanization process giving an exclusive mat grey finish
  • Safety bolts and nuts are additionally painted in blue and red for quick and easy detection as original POWERTEX parts
  • Retaining pins made from stainless steel
  • Multilanguage user manuals
  • Material: Forged alloy steel, supplied with safety bolt and nuts. Stainless steel retaining pins.
  • Marking: According to standard, POWERTEX (PT or PTEX) , WLL, CE, size, grade and batch number.
  • Finish: All parts hot dip galvanized + head-bolt and nut additional powder painted.
  • Standard: EN 13889
  • Safety factor: 6:1
  • Grade: 6
1232_lom_225mm

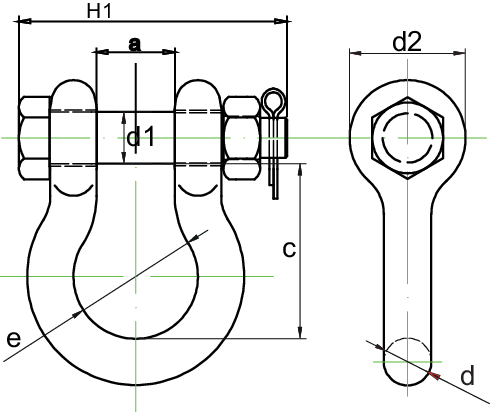

128716
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
Pin Ø d1
mm
Nominal Size a*
mm
c*
mm
d
mm
d2
mm
e
mm
H1
mm
Weight
kg
05A4010 1232 0.5 8 1/4 13 29 6,5 17,5 20 42,5 0.05
05A4020 1233 0.75 9,5 5/16 13,5 31 8 21 21,5 47 0.1
05A4040 1234 1 11,2 3/8 17 37 10 25 26,2 56,5 0.15
05A4030 1235 1.5 12,7 7/16 18,5 43 11,3 27 29,5 63,5 0.22
05A4050 1236 2 15,8 1/2 20,6 48 12,7 30,5 33,3 75,5 0.36
05A4060 1237 3.25 18,8 5/8 27 60 16 40 43 92 0.76
05A4070 1238 4.75 22 3/4 32 72 19 48 51 106 1.2
05A4080 1239 6.5 25 7/8 37 85 22 54 58 120 1.8
05A4090 1240 8.5 28 1 43,5 96 26,5 60 68,5 135 2.6
05A4100 1241 9.5 32 1-1/8 48 109 29 68 75 143 3.8
05A4110 1242 12 35 1-1/4 53 121 32 76 84 164 5.3
05A4120 1243 13.5 38 1-3/8 59 134 35 84 94 182 7.2
05A4130 1244 17 42 1-1/2 62 149 38 92 99 195 9.4
05A4140 1245 25 50 1-3/4 75 178 45 106 128 224 15
05A4150 1246 35 56 2 84 197 52 122 148 248 24
05A4160 1247 55 70 2-1/2 107 270 66 145 186 302 45
05A4170 1248 85 80 3 130 325 76 165 205 395 70
*Tolerance: +/- 5%
