Crosby

Features:
Hoist hooks incorporate markings forged into the product which address two (2) QUIC-CHECK® features:
• Deformation Indicators -- Two strategically placed marks, one just below the shank or eye and the other on the hook tip, which allows for a QUIC-CHECK® measurement to determine if the throat opening has changed, thus indicating abuse or overload.
• Angle Indicators — Indicates the maximum included angle which is allowed between two (2) sling legs in the hook. These indicators also provide the opportunity to approximate other included angles between two sling legs.

  • Material: Carbon steel
  • Marking: CE-marked
  • Note: This hook is a positioning device and is not intended to rotate under load.
  • Safety factor: 5:1
  • Grade: 4
SHSm_225mm

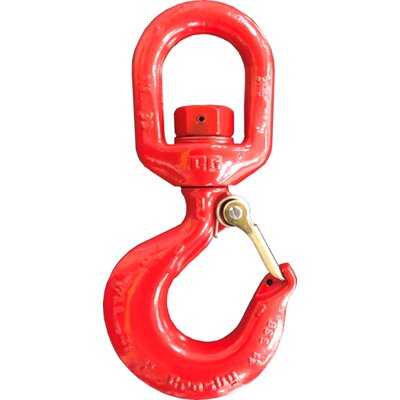

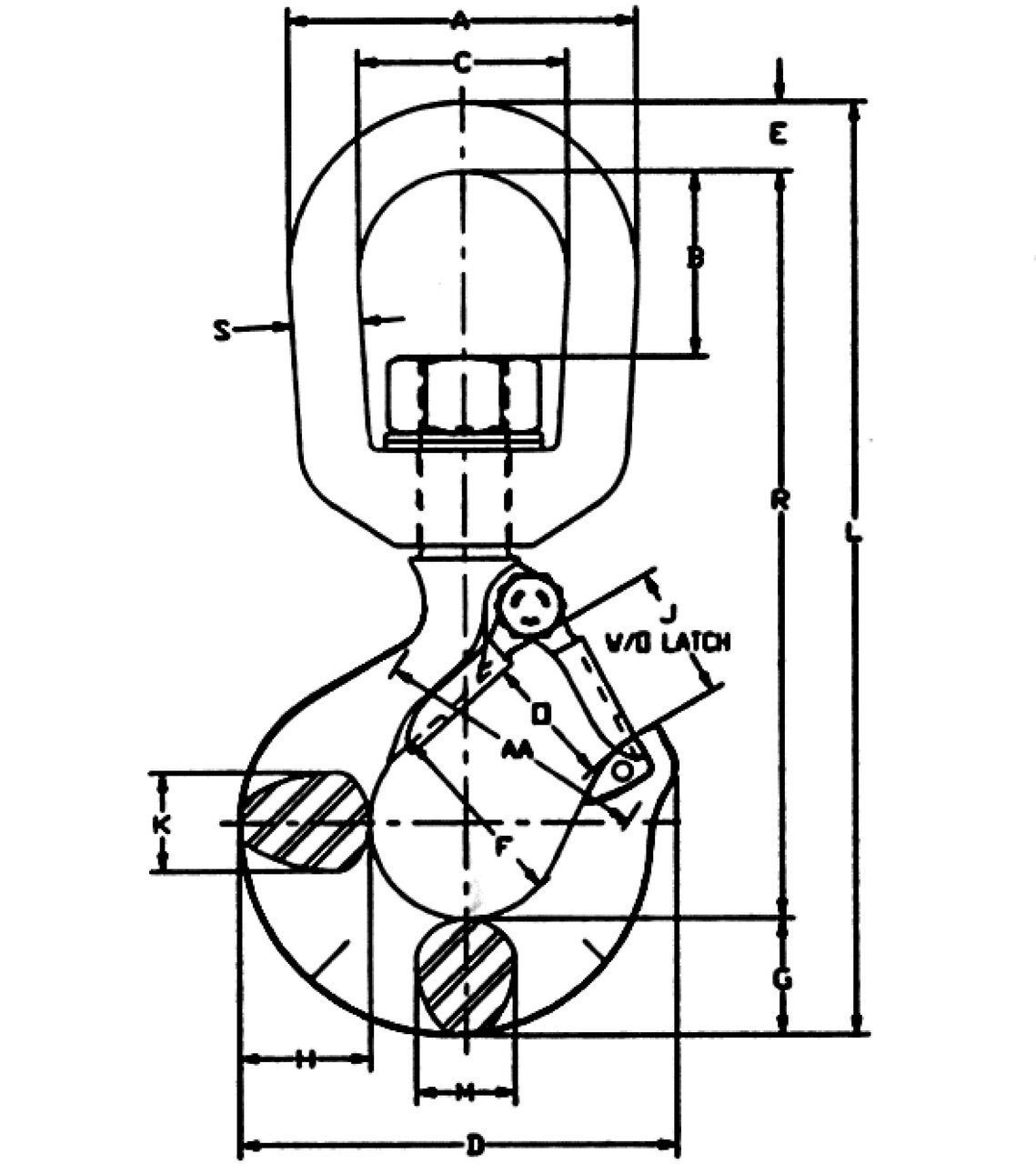

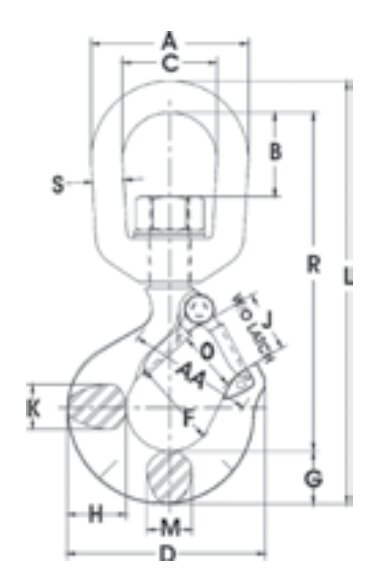

Crosby L322 Swivel Hook drg
Select a row from the table below, then click the add to quote button
Part Code WLL A
mm
B
mm
C
mm
D
mm
F
mm
G
mm
H
mm
J
mm
K
mm
L
mm
M
mm
O*
mm
R
mm
S
mm
AA**
mm
Weight
kg
-- 0.75 51 20.8 31.8 72.5 31.8 18.5 20.6 23.6 16 144 16 23.6 116 9.65 38.1 0.34
-- 1 63.5 33.3 38.1 80 35.1 21.3 23.9 24.6 18 170 18 24.6 136 12.7 50.8 0.57
-- 1.6 76 38.1 44.5 91 38.1 25.4 29.5 26.9 22.4 197 22.4 26.9 155 16 50.8 1.02
-- 2 76 38.1 44.5 102 41.1 28.7 33.3 30.2 23.9 210 23.9 29.5 165 16 50.8 1.04
-- 3.2 89 41.7 50.8 123 51 36.6 41.4 38.1 33.3 246 28.7 35.8 191 19.1 63.5 2.25
-- 5 116 58 63.5 160 63.5 46 52.5 45.2 42.2 317 36.6 42.9 245 25.4 76.2 4.67
-- 7.5 127 62 70 192 76 57 67 51 47.8 375 41.4 56.5 289 28.7 101 8.8
-- 10 143 63 79 212 82.5 66 74.5 66.5 55.5 417 49.3 61 311 31.8 101 10.5
-- 15 180 95.5 104 263 108 76 89 86.5 68.5 542 60.5 81 424 38.1 127 21.3
Standard Proof load is 2 times WLL .
* Dimension for standard latch kit S-4320.
** Deform indicators
