Eyebolts - Collared BS 4278:1984 (Metric Thread)

Design: Warning! Safe working loads quoted refer to the load being applied vertically. Eyebolts need to be down rated when side loading occurs. Sizes marked * are additional and proportional to the specification.
Also available with UNC, UNF, BSF threads.

    • Safety factor: 4:1.
    9508M_225mm

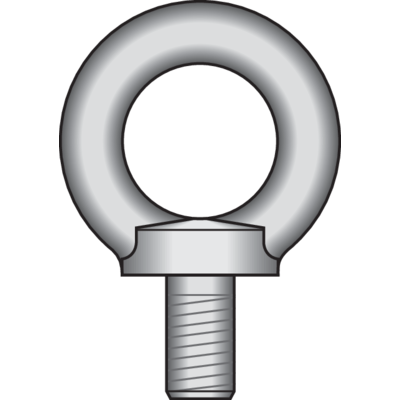

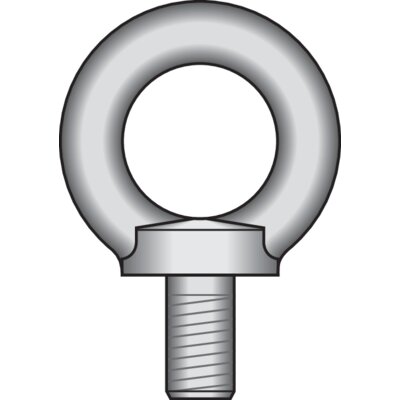

    BS4278 Metric Eyebolt Dimensions Image 1

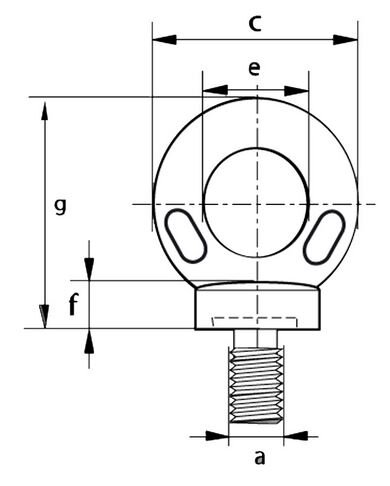

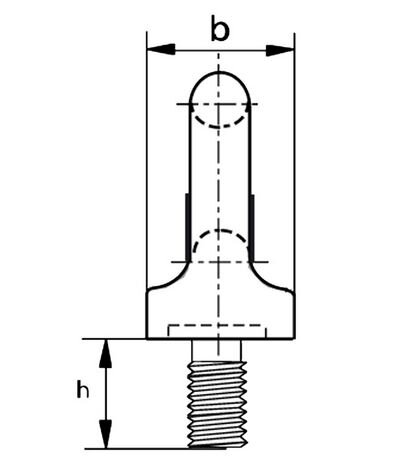

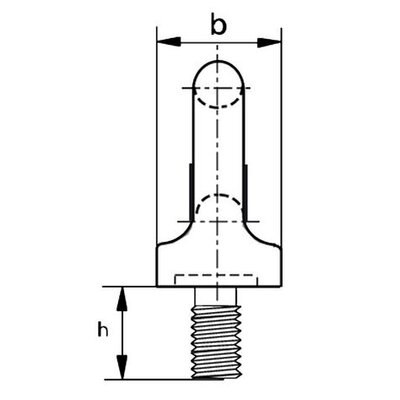

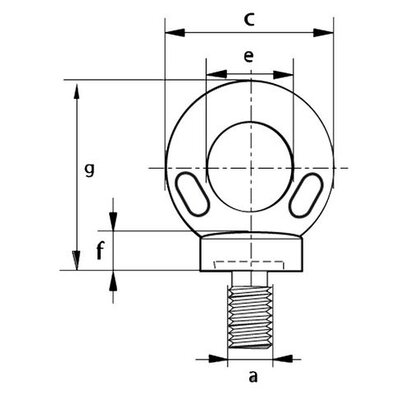

    BS4278 Metric Eyebolt Dimensions Image 2
    Select a row from the table below, then click the add to quote button
    Part Code Safe Working Load (tonnes) Thread dia a
    mm    		 Base dia b
    mm    		 Eye Outside dia c
    mm    		 Eye Inside dia e
    mm    		 Collar Thickness f
    mm    		 Height g
    mm    		 Thread length h
    mm    		 Weight
    kg
    05B0040 0,4 12 22 33 15 7 36 18 0,06
    05B0050 0,5 14 29 44 20 10 48 23 0,15
    05B0060 0,8 16 29 44 20 10 48 23 0,15
    05B0070 1 18 36 52 24 12 58 28 0,27
    05B0080 1,6 20 40 59 27 14 65 32 0,38
    05B0090 1,6 22 45 64 30 14 73 35 0,54
    05B0100 2,5 24 52 77 35 17 84 40 0,85
    05B0110 2,5 27 58 85 39 20 94 46 1,13
    05B0120 4 30 65 96 44 22 106 51 1,62
    05B0130 4 33 72 106 48 24 117 56 2,37
    05B0140 6,3 36 81 118 54 27 131 63 3,12
    -- 6,3 39 86 123 57 29 137 67 3,81
    -- 8 42 101 148 68 34 164 79 6,27
    -- 8 45 101 148 68 34 164 79 6,45
    05B0145 10 48 101 148 68 34 164 79 6,51
    -- 12,5 52 115 168 76 38 186 89 9,58
    -- 16 56 128 188 86 43 208 100 12,99
    -- 20 64 144 212 96 48 234 112 18,2

    * Sizes marked * is for any product with a thread of less than 12mm.
