Certificates: This product is supplied with an EC declaration of conformity, upon request a certificate of basic raw material

  • Material: Eyebolt: BS970-080A27 hardened and tempered, Link: high tensile steel
  • Finish: Self colour
  • Safety factor: MBL equals 5 x SWL

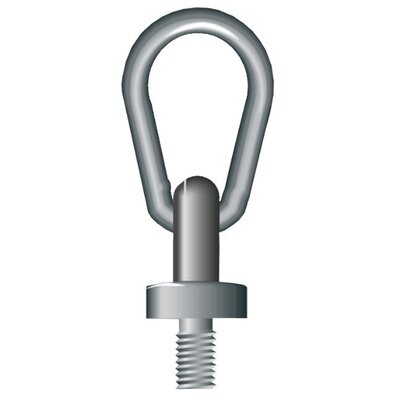

Product Image 1
Product Image 2
Select a row from the table below, then click the add to quote button

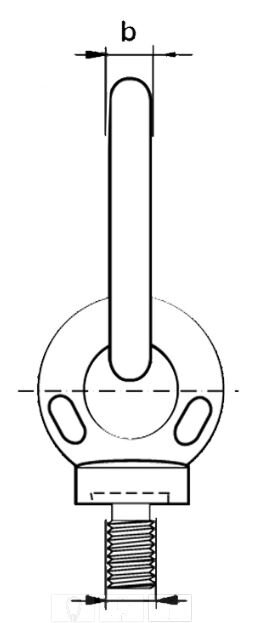

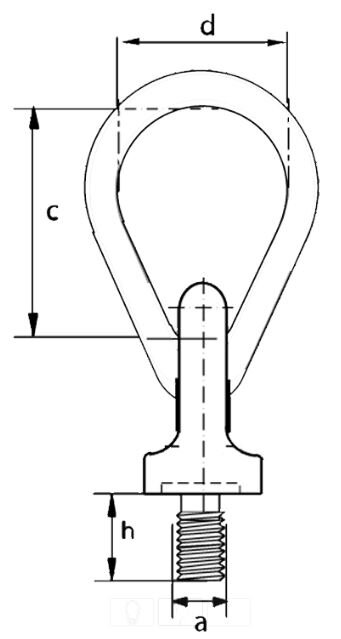

Art No Safe working load (ton) diameter link b (mm) length link inside c (mm) width link inside d (mm) thread length h mm Thread a Weight
kg
CAD
24101 0.15 11 70 35 18 8 0.22
24102 0.25 11 70 35 18 10 0.22
24103 0.4 11 70 35 18 12 0.23
24104 0.8 16 100 50 23 16 0.62
24105 1.6 19 120 55 32 20 1.17
24106 2.5 25 152 76 40 24 2.66
