Powertex
  • Cr6+ Free

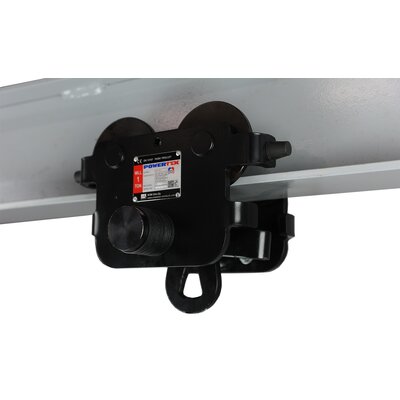

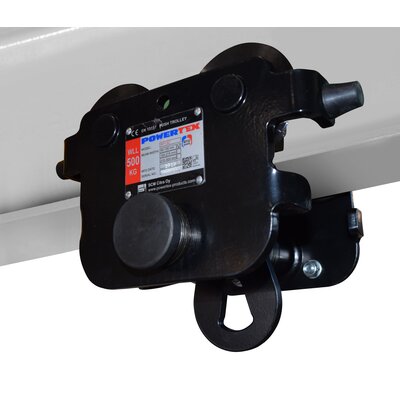

POWERTEX PPT-S2 is a high quality, durable low built push trolley that is easy to install on horizontal beams and rails.

The trolleys can be used for I-beams with plane flanges (such as IPE, HEA or HEB types) or beams with sloping flanges (such as INP-beams).

The trolley can easily be positioned along the beam by pushing or pulling thanks to high quality steel wheels with bearings.

Features:

  • Safe - All POWERTEX trolleys are proof load tested 1,5 x WLL
  • Mechanical stops integrated in the design to prevent derailing
  • Equipped with connection plate with eye to hoist’s upper hook or direct connection
  • Connection plate can be turned 90 degrees to allow direct connection to POWERTEX S2 hoists without need of intermediate hook/eye
  • Rubber bumpers to absorb shock loads on impact to rail ending
  • Equipped with RFID for quick registration and maintenance
  • Marked with QR code to allow access to user manuals at any time
  • PPT-S2 is easy to mount and dismount on a horizontal rail or beam
  • The 3 piece design makes installation quick and ergonomically
  • The shaft is easily locked using the lock plate (No need to use large castle nut nor collar pins)
  • Wheel shafts are robotic welded for high quality weld seams
  • Large steel wheels equipped with double sided sealed bearings that do not need maintenance
  • Powder painted side panels gives a nice lasting finish
  • Fits most types of beam profiles and most brands of lifting blocks and electric hoists
  • Longer shafts for wider beams can be supplied from stock in EU
  • Can be turned into Blackline version BT by adding the included grey label over the shiny nameplate.

Blackline BT products are suitable to be used in theatres and entertainment industry.

  • Marking: According to standard, CE-marked, WLL, beam width, individual serial number
  • Temperature range: -10°C up to +50°C.
  • Finish: Black powder painted (Matt finish)
  • Standard: EN 13157
  • Safety factor: 4:1
RFID equipped
Select a row from the table below, then click the add to quote button

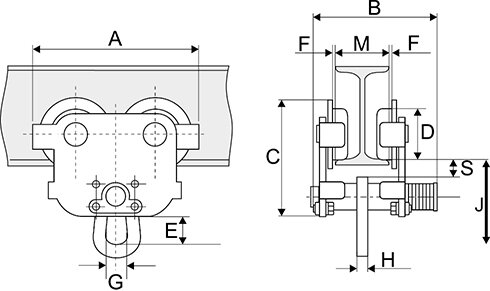

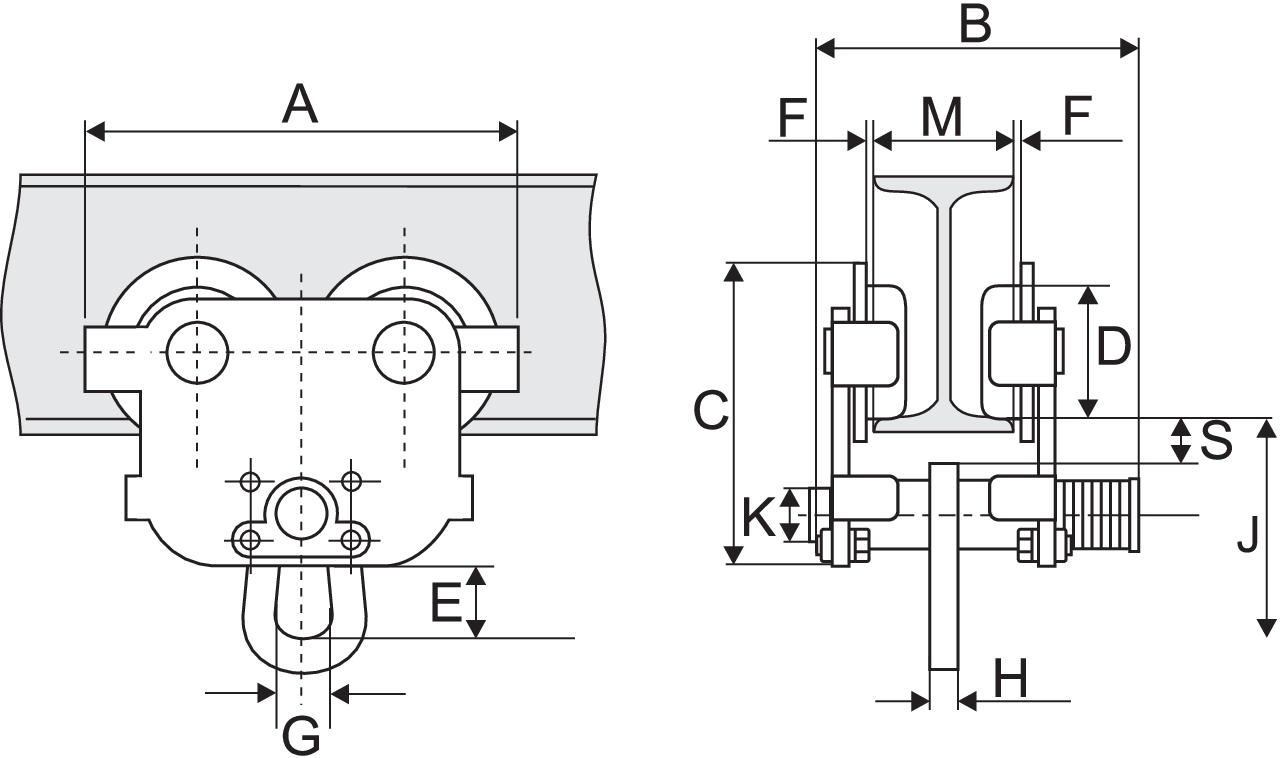

Part Code WLL
ton
Model Flange width M
mm
Minimum radius
mm
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
J
mm
K
mm
S
mm
Weight
kg
16.05PPTS20025 0.25 PPT-S2 50-152 800 188 208 137 50 29 1 – 1,5 28 6 104 20 27 4.6
16.05PPTS2005 0.5 PPT-S2 50-135 800 205 198 150 55 30 1,5 – 2 28 8 111 28 27 6.8
16.05PPTS2005B 0.5 PPT-S2 130-215 800 242 211 174 68 30 1,5 – 2 32 10 118 32 28 6.8
16.05PPTS2005C 0.5 PPT-S2 215-300 800 270 238 194 80 49 1,5 – 2 40 12 147 36 27 6.8
16.05PPTS2010 1 PPT-S2 55-140 1,000 325 246 234 100 60 2-3 49 14 177 44 29 11.2
16.05PPTS2010B 1 PPT-S2 140-215 1,000 370 280 234 110 79 2-3 59 16 219 55 29 11.2
16.05PPTS2010C 1 PPT-S2 215-300 1,000 205 278 267 55 30 1,5 – 2 28 8 111 28 27 11.2
16.05PPTS2020 2 PPT-S2 65-155 1,100 205 363 150 55 30 1,5 – 2 28 8 111 28 27 16.9
16.05PPTS2020B 2 PPT-S2 150-230 1,100 242 286 150 68 30 1,5 – 2 32 10 118 32 28 16.9
16.05PPTS2020C 2 PPT-S2 230-300 1,100 242 371 174 68 30 1,5 – 2 32 10 118 32 28 16.9
16.05PPTS2030 3 PPT-S2 90-160 1,300 270 313 174 80 49 1,5 – 2 40 12 147 36 27 28.6
16.05PPTS2030B 3 PPT-S2 160-230 1,300 270 383 194 80 49 1,5 – 2 40 12 147 36 27 28.6
16.05PPTS2030C 3 PPT-S2 230-300 1,300 325 316 194 100 60 2 – 3 49 14 177 44 29 28.6
16.05PPTS2050 5 PPT-S2 90-180 1,500 325 386 234 100 60 2 – 3 49 14 177 44 29 44.8
16.05PPTS2050B 5 PPT-S2 180-230 1,500 370 330 267 110 79 2 – 3 59 16 219 55 29 44.8
16.05PPTS2050C 5 PPT-S2 230-300 1,500 370 330 267 110 79 2 – 3 59 16 219 55 29 44.8
