Horizontal Lifting Clamp IPHOZ

Crosby

General:
The IPHOZ horizontal lifting clamp is to be used for lifting and transferring, in the horizontal position, of thin sheet and other materials that will sag or bend when lifted. These clamps must be used in pairs or more.

Features:
• Available in capacities of .75 thru 15 metric tons.
• Wide variety of jaw openings available: 0 to 60mm.
• Welded alloy steel body for strength and smaller size. Forged alloy components, where required.
• Individually Proof Tested to 2 times the Working Load Limit with certification.
• User manual with test certificate is included with each clamp.
• Maintenance and repair kits are available.
• All sizes are RFID EQUIPPED.

  • Material: Alloy steel.
  • Marking: According to standard, CE-marked
  • Standard: EN 13155
  • Warning: Only to be used in pairs.

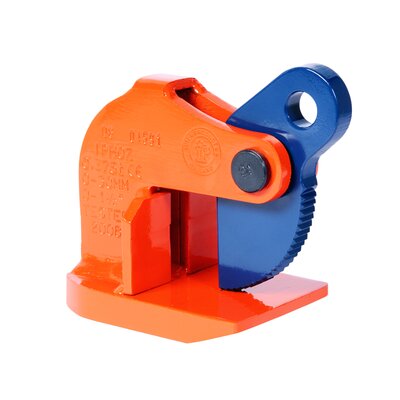

    Crosby IPHOZ Horizontal Lifting Clamps for thin sheets lifting. Must be used in pairs.

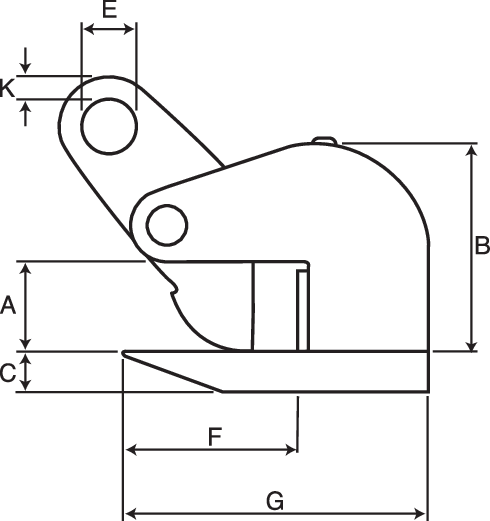

    Crosby IPHOZ Horizontal Lifting Clamps measurements
    Select a row from the table below, then click the add to quote button
    Part Code WLL
    ton    		 Jaw width
    mm    		 I P Model. B
    mm    		 C
    mm    		 E
    mm    		 F
    mm    		 G
    mm    		 H
    mm    		 J
    mm    		 K
    mm    		 L
    mm    		 Weight
    kg    		 CAD
    -- 0,75 0-30 0.75-IPHOZ 94 16 16 70 118 81 12 31 12 3 -
    -- 1,5 0-45 1.5-IPHOZ 133 16 22 125 192 100 16 36 12 5,5 -
    -- 3 0-45 3-IPHOZ 137 20 26 125 200 120 20 48 10 8 -
    -- 4,5 0-45 4.5-IPHOZ 138 25 30 126 220 120 20 50 10 8,5 -
    -- 6 0-60 6-IPHOZ 171 30 36 135 235 130 20 56 20 15,5 -
    -- 9 0-60 9-IPHOZ 211 30 43 166 276 160 25 62 20 20,5 -
    -- 12 0-60 12-IPHOZ 217 40 47 168 294 190 25 62 38 -
    -- 15 0-60 15-IPHOZ 220 40 47 183 317 250 25 62 22 38 -

    The Working Load Limit in the table is per pair (ton/pair)
