The IPSTARTEC11 beam clamp has been specially developed for lifting with the body in vertical position, controlled tilting, transportation and stacking of steel “H” and “I” profiles. By placing the chain guide in the appropriate position, it is easy to switch from lifting to tilting and back again, which shifts the center of gravity.

• Available in capacities of 1.5 and 2.5 metric tons.
• Jaw openings available: 6 to 20mm.
• Welded alloy steel body for strength and smaller size. Forged alloy components, where required.
• Individually Proof Tested to 2 times the Working Load Limit with certification.
• User manual with test certificate is included with each clamp.
• Maintenance and repair kits are available.
• All sizes are RFID EQUIPPED.


  • Features:
  • Material: Alloy steel.
  • Marking: According to standard, CE-marked
  • Standard: EN 13155

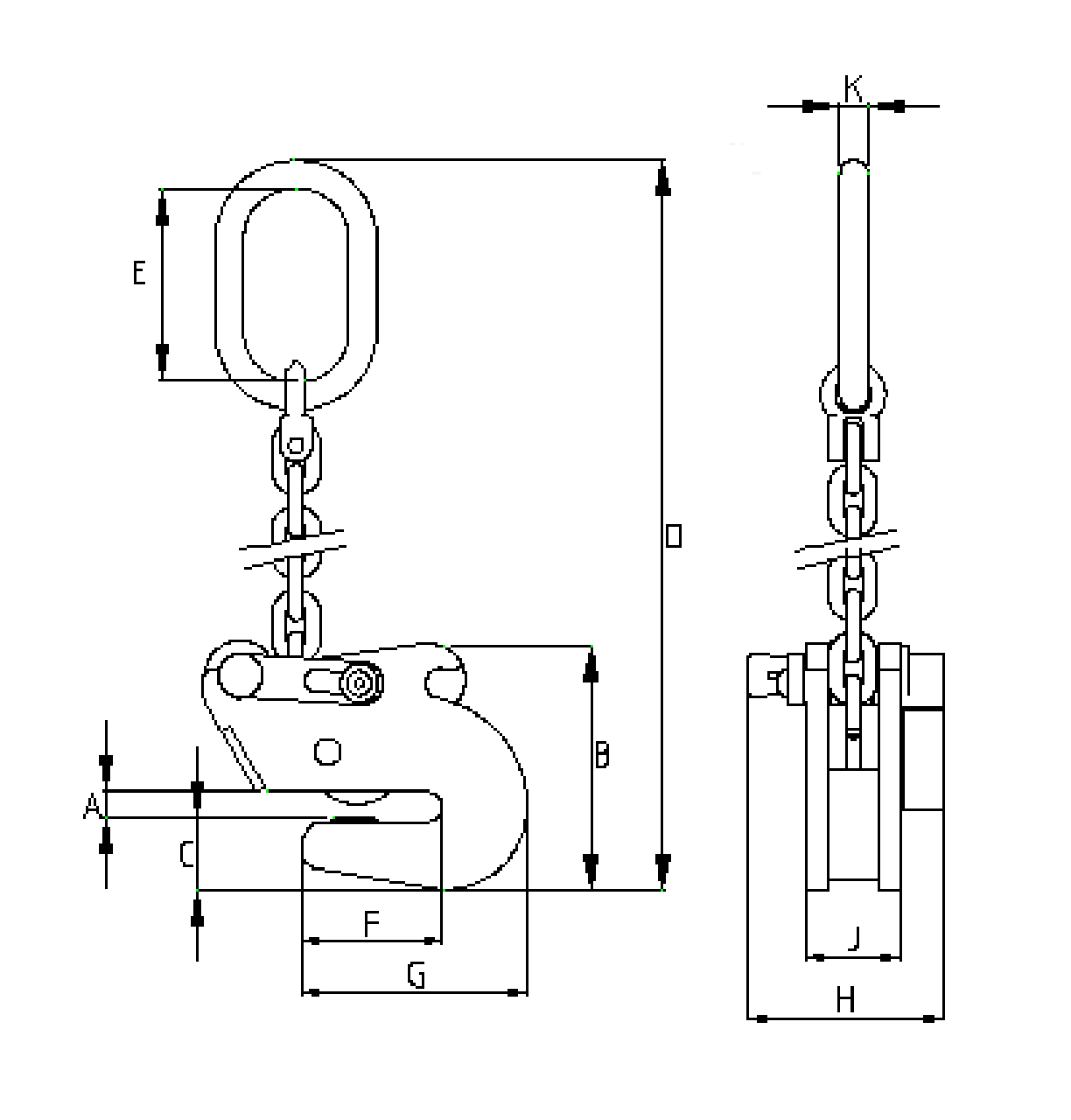

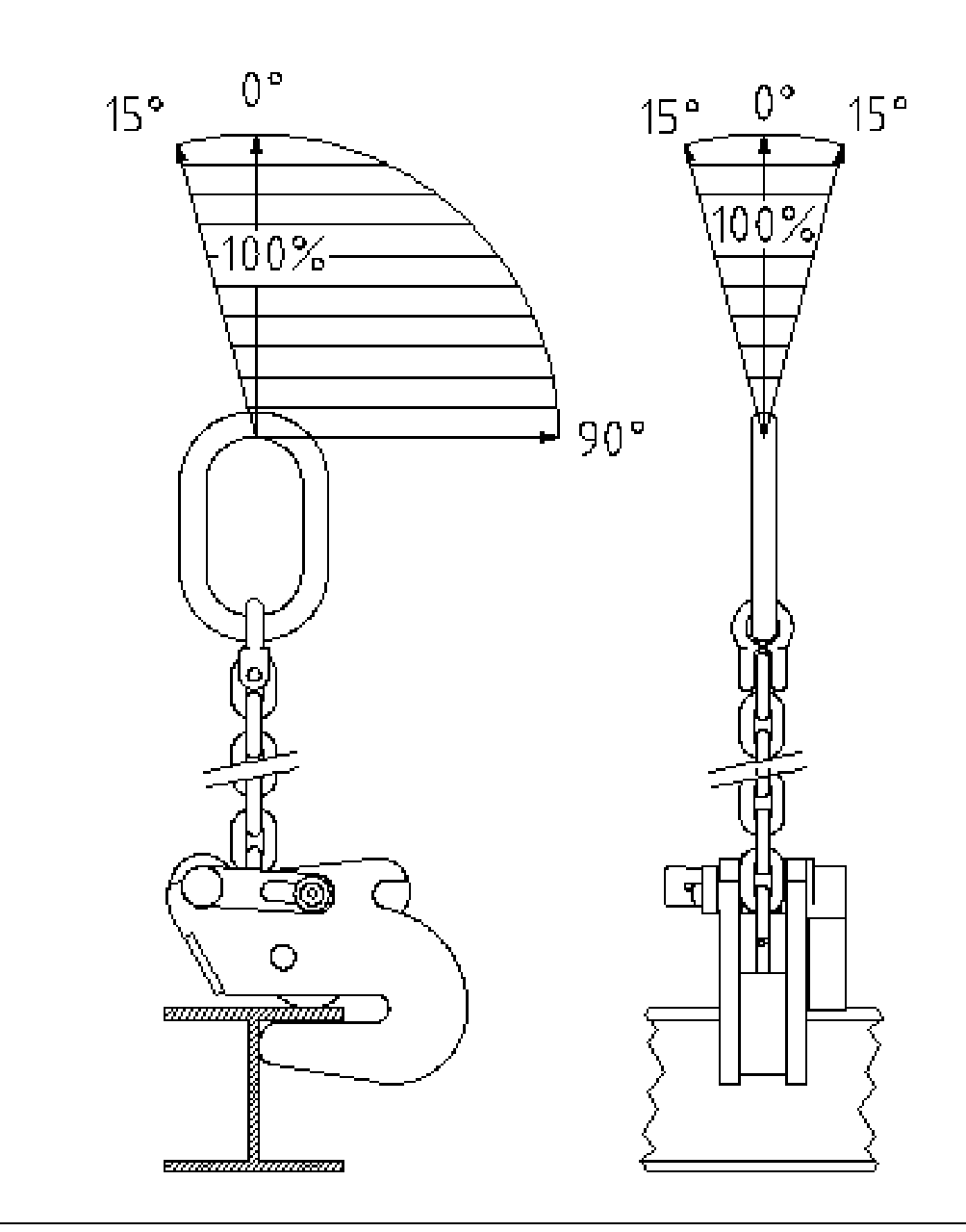

Crosby_IPSTARTEC11_drw1 Crosby_IPSTARTEC11_drw2
Select a row from the table below, then click the add to quote button
Part Code WLL
I P Model. Jaw width (mm) B (mm) C (mm) D
E (mm) F (mm) G (mm) H (mm) J (mm) K
-- 1.5 1.5-IPSTARTEC11 6-12 140 39 575 110 81 129 54 126 16 6.6
-- 2.5 2.5-IPSTARTEC11 6-20 210 55 725 135 115 182 74 140 18 14.5
