Typical applications: Mooring and towage.
Generally: A 12 strand roundline profile gives TQ12 excellent abrasion characteristics so increasing its service lifetime over conventional constructions. This construction helps reduce kinking, making it easy to handle and store. TQ12 is quick and easy to splice.



Markers: None.
Relative density: 0.92.
Melting point: 170°C.
Torque properties: Torque balanced.
Shrinkage (cold water): 0%.
Water uptake: Low.
UV resistance: Fully UV stabilised.
Abrasion resistance: Excellent.
Break elongation: Approx 18%.

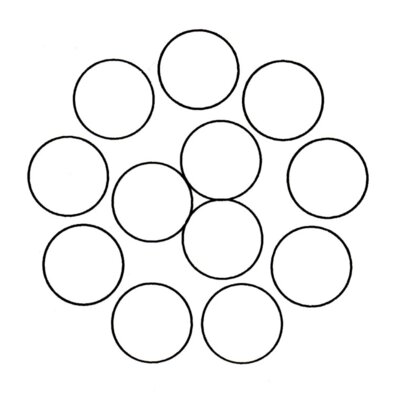

  • Rope construction: 12 strand (12x1).
  • Material: High tenacity polyolefin fibre.
  • Finish: Blue and white.
    tq12xtra.eps
    Select a row from the table below, then click the add to quote button
    Part Code Diameter
    mm
    WLL
    ton
    Length
    m
    m
    Mass
    kg/220 m
    Circ.
    inches
    -- 32 20,6 220 101 4
    -- 36 28,3 220 129 4,5
    -- 40 32,5 220 158 5
    -- 44 38,5 220 193 5,5
    -- 48 45,1 220 228 6
    -- 52 52,8 220 268 6,5
    -- 56 60,5 220 312 7
    -- 60 69,3 220 358 7,5
    -- 64 78,1 220 407 8
    -- 68 88 220 460 8,5
    -- 72 97,9 220 514 9
    -- 76 109 220 575 9,5
    -- 80 121 220 638 10
    -- 88 143 220 772 11
    -- 96 167 220 916 12
