Crosby

Design: Swivel with eyes equipped with tapered roller thrust bearing.

Features:

  • Suitable for frequent rotation under load.
  • All swivels individually Proof Tested to 2 times the Working Load Limit.
  • Pressure lube fitting provided
  • Other types and capacities up to 1250 t available on demand.
  • Marking: CE-marked
  • Note: Always check before use if your steel wire rope is suitable for use with a swivel.
  • Warning: Not to be used on demolition- (wrecking-) balls!
  • Safety factor: 5:1
Crosby AS-5 Eye and Eye Swivel effective for lifting where turning is required

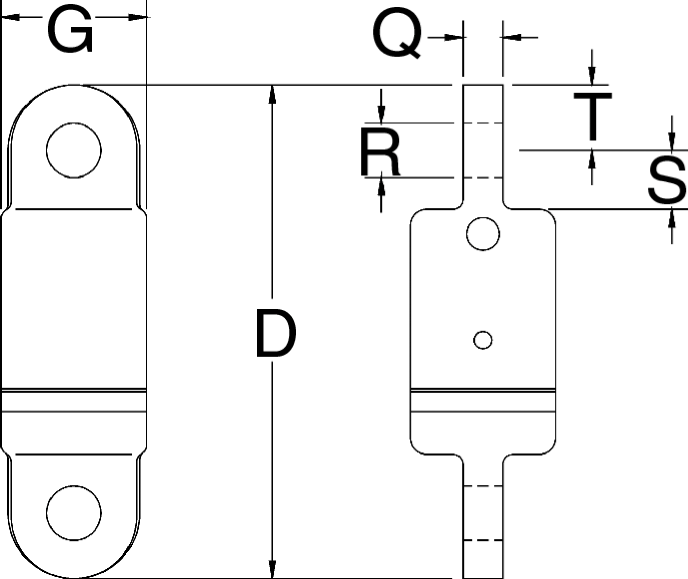

Crosby AS-5 Eye and Eye Swivel measurements
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Rope Ø
mm
Swivel No D
mm
G
mm
Q
mm
R
mm
S
mm
T
mm
Weight
kg
CAD
-- 3 13 3-S-5 239 70 19,1 26,2 28,4 31,8 3,86
-- 5 16 5-S-5 249 76 25,4 32,5 31,8 31,8 5,13
-- 8,5 19 8-S-5 302 102 31,8 35,8 41,1 38,1 13,3
-- 10 22 10-S-5 394 114 42,9 42,9 70 47,8 19,1
-- 15 26 15-S-5 416 127 49,3 51,5 70 54 22,2
-- 25 - 25-S-5 565 152 57 58,5 98,5 60,5 59
-- 35 - 35-S-5 565 165 57 58,5 98,5 60,5 66
-- 45 - 45-S-5 673 178 63,5 64,5 102 76 98

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
