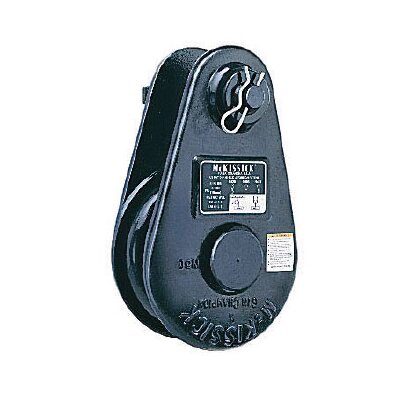

The McKissick snatch block 407 Champion from Crosby is a Tail board type snatch block. Can be delivered with bronze bushing (BB) and with roller bearing (RB).

Features:

  • Bolt for opening feature is retained, to ensure no lost bolts.
  • Opening feature permits easy insertion of rope without reeving, or while the block is suspended.
  • Center pin equipped with pressure lube fitting.
  • All sizes feature sheave grooves suited for a range of wire line diameters.
  • Meets or exceeds all requirements of ASME B30.26 including identification ductility, design factor, proof load and temperature requirements.
  • Meet other critical performance requirements including fatigue life and material traceability, not addressed by ASME B30.26.
  • Material: Forged steel.
  • Safety factor: 4:1
Product Image 1
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Sheave dia.
mm
Bearing Code Wire Rope Size
mm

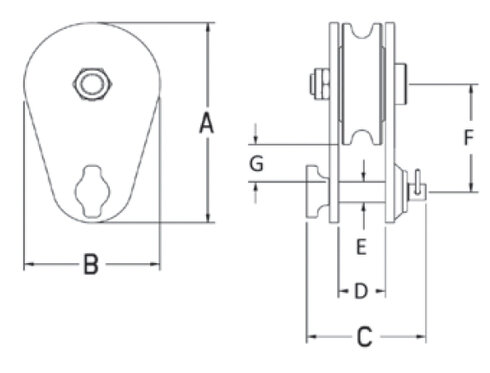

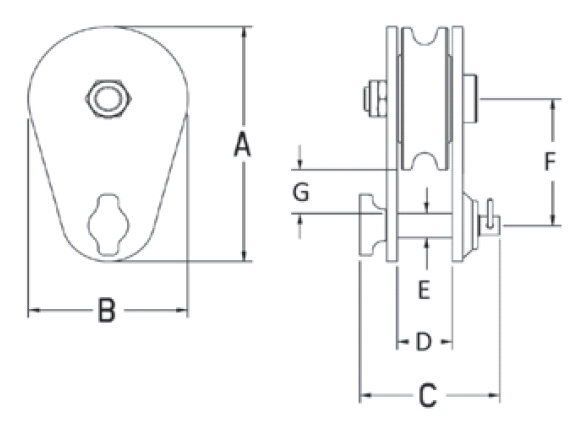

A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
Weight
kg
CAD
-- 20 203 BB 26-29 344 206 152 65 38 181 80 19,1 -
-- 20 203 RB 26-29 344 206 152 65 38 181 80 19,1 -
-- 20 254 BB 26-29 397 257 152 65 38 208 62 24,9 -
-- 20 254 RB 26-29 397 257 152 65 38 208 62 24,9 -
-- 20 305 BB 26-29 451 311 152 65 38 235 65 31,8 -
-- 20 305 RB 26-29 451 311 152 65 38 235 65 31,8 -
-- 20 356 BB 26-29 511 356 152 65 38 272 75 40,8 -
-- 20 356 RB 26-29 511 356 152 65 38 272 75 40,8 -
-- 25 457 BB 26-32 625 464 181 77 44 330 79 74,8 -
-- 25 457 RB 26-32 625 464 181 77 44 330 79 74,8 -
-- 30 508 BB 26-32 734 514 211 90 57 387 105 97,5 -
-- 30 508 RB 26-32 734 514 211 90 57 387 105 97,5 -
-- 30 610 BB 26-32 826 616 211 90 57 429 95 131,5 -
-- 30 610 RB 26-32 826 616 211 90 57 429 95 131,5 -

Bearing codes:
BB = Bronze Bushing
RB = Roller Bearing

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

To download CAD files, you must provide a valid e-mail address

Fetching the CAD file...
