Crosby

General:

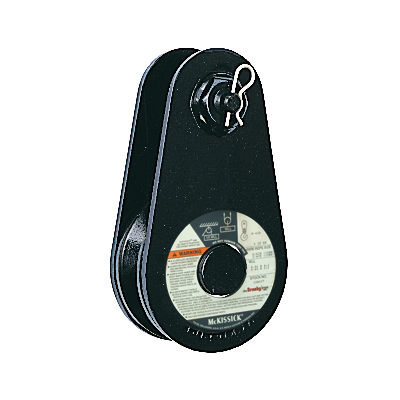

The McKissick snatch block 404 Light Champion from Crosby is a Tail board type snatch block. Available from WLL 2  up to 8 T. Can be delivered with bronze bushing (BB) and from WLL 8 T also with roller bearing (RB).

Features:

  • Bolt for opening feature is retained, to ensure no lost bolts.
  • Opening feature permits easy insertion of rope without reeving, or while the block is suspended.
  • Center pin equipped with pressure lube fitting.
  • All sizes feature sheave grooves suited for a range of wire line diameters.
  • Meets or exceeds all requirements of ASME B30.26 including identification ductility, design factor, proof load and temperature requirements.
  • Meet other critical performance requirements including fatigue life and material traceability, not addressed by ASME B30.26.
  • Material: Forged steel.
  • Safety factor: 4:1
Select a row from the table below, then click the add to quote button
Part Code WLL Sheave dia.
mm
Bearing Code Wire Rope Size
mm
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
Weight
kg
-- 2 76 BB 8 - 10 124 76 67 26 13 67 22 1.4
-- 4 114 BB 10 - 13 197 108 79 40 19 108 41 3.2
-- 8 152 BB 16 - 19 251 152 106 46 25 130 41 6.8
-- 8 152 RB 16 - 19 251 152 106 46 25 130 41 6.8
-- 8 203 BB 16 - 19 303 206 106 46 25 155 41 9.5
-- 8 203 RB 16 - 19 303 206 106 46 25 155 41 9.5
-- 8 254 BB 16 - 19 356 257 106 46 25 183 43 13.2

Bearing codes:
BB = Bronze Bushing
RB = Roller Bearing
