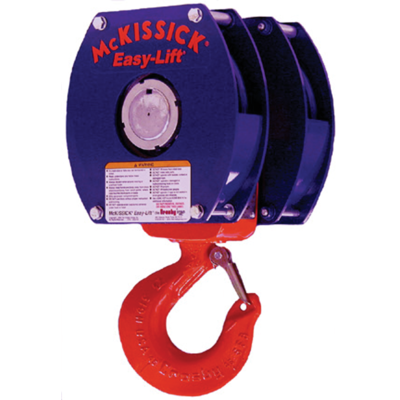

The patented McKissick QUIC-KIT® system is a revolutionary concept that provides you the ability to build a factory quality replacement bridge crane block where you need it, when you need it.
The QUIC-KIT® system provides the components needed to build up to 32 possible combinations of a 750 bridge crane block; all in one kit that can be easily assembled on site.
Features of the McKissick QUIC-KIT® include:
- Reduced downtime — A replacement block can be assembled in minutes from kit components utilizing tools and assembly instructions provided in each kit.
- Multiple versions of two sheave blocks — Up to 32 possible block combinations are included in the 752 series block kit. Each kit contains three WireLine sizes and two center pins with multiple sheave spacers.
- Adjustable sheave spacing in 1/2” increments — Center pin design gives you the ability to assemble the replacement block to meet your spacing requirement.
- The McKissick QUIC-KIT® — Comes complete in a durable carrying case for easy transport and for storing components on the work site or warehouse.
- Material: Forged alloy steel, quenched and tempered
Download CAD
Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
To download CAD files, you must provide a valid e-mail address
|
Art No
|
WLL
|
Sheave O.D.
|
Pitch Diameter |
Sheave Spacing Centerline |
Sheave wire
|
||||
|
|
tons
|
in.
|
in. | mm |
in.
|
mm
|
in.
|
mm
|
|
|
16.151003595
|
3 |
6,5
|
5.95 | 150-152 |
5,69
|
151
|
1/4, 5/16, 3/8
|
6,5, 8, 9-10
|
|
|
16.151003604
|
5 |
8
|
7.38 | 183-191 |
7,38
|
187
|
1/4, 5/16, 3/8, 7/16, 1/2
|
6,5, 8, 9-10, 11, 12-13
|
|
|
16.151003613
|
7.5 |
10
|
9.25 | 228-236 |
9,25
|
235
|
3/8, 7/16, 1/2, 9/16, 5/8
|
9-10, 11, 12-13, 14, 16
|
|
|
16.151003622
|
10 |
12
|
11 | 273-282 |
11,0
|
279
|
1/2, 9/16, 5/8, 3/4
|
12-13, 14, 16, 19
|
|
|
16.151003631
|
15
|
12
|
11 | 273-282 |
12,5
|
318
|
1/2, 9/16, 5/8, 3/4 | 12-13, 14, 16, 19 | |
