Bridon
  • Ordinary right hand lay
  • Ordinary left hand lay
  • Right hand langs lay
  • Left hand langs lay
  • Bright
  • Galvanized
  • Compacted strands
  • Not to be used with swivel

Superior bending fatigue life when compared with other conventional eight strand ropes.
Excellent resistance to crushing and abrasion particularly on multi layer coiling resulting from the Dyform strands.
Reduced elongation results from increased steel content and the Dyform process.
Optional plastic impregnation to further extend fatigue life, improve structural stability and resistance to corrosion.

Standard: EN 12385-4
ISO 4309 Rope Category No: 10-17mm RCN.04, 18-34mm RCN.09, 36-50mm RCN.11

  • Features: High breaking force.
  • Material: High Carbon Steel
  • Marking: On Termination ID and CE mark
  • Finish: Galvanised or Ungalvanised
  • Fill factor: 0.68

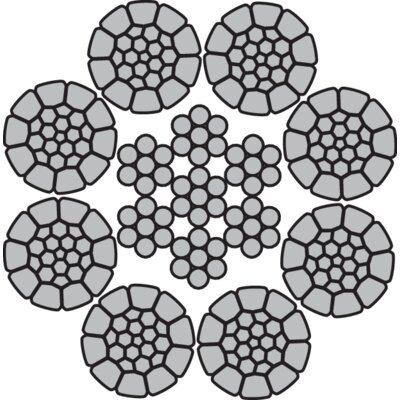

Dyform 8

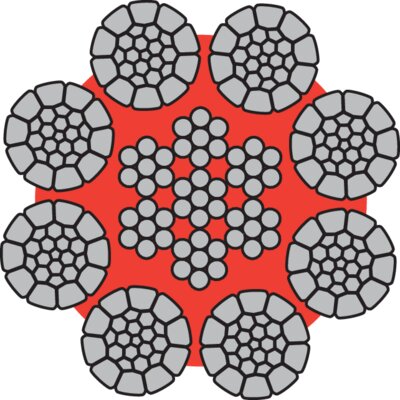

Dyform 8-PI
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm
Min. breaking force
kN
1960 N/mm²
Minimum breaking force Rope grade 1960
ton
Minimum breaking force Rope grade 2160
ton
Weight
kg/100m
-- 10 88.2 8.99 45.3
-- 11 107 10.9 55.9
-- 12 127 12.9 65.3
-- 13 149 15.2 76.6
-- 14 173 17.6 88.8
-- 15 198 20.2 103
-- 16 226 23 24.1 116
-- 17 255 26 27.2 135
-- 18 286 29.1 30.5 150
-- 19 318 32.5 33.9 167
-- 20 353 36 37.6 184
-- 22 427 43.5 45.5 222
-- 24 508 51.8 54.2 265
-- 26 596 60.8 63.6 315
-- 28 691 70.55 73.7 367
-- 30 794 80.9 84.6 425
-- 32 903 92.1 96.3 485
-- 34 1,020 103.9 109 543
-- 36 1,143 116.5 122 606
-- 38 1,274 129.8 136 678
-- 40 1,411 143.9 150 755
-- 42 1,556 158.6 166 842
-- 44 1,708 174.1 182 925
-- 46 1,866 190.2 199 1,010
-- 48 2,032 207.1 217 1,110
-- 50 2,205 224.8 235 1,200
