Crosby


Fits pin for open wire rope socket, boom pendant clevis and wedge socket.



Standard: Meets the performance requirements of EN 13411-1.

  • Features: Greater protection against wear and deformation of the wire rope eye giving longer service life.
  • Material: Steel.
  • Marking: Manufacturer's symbol.
  • Finish: Painted.
6003_e_225mm_2

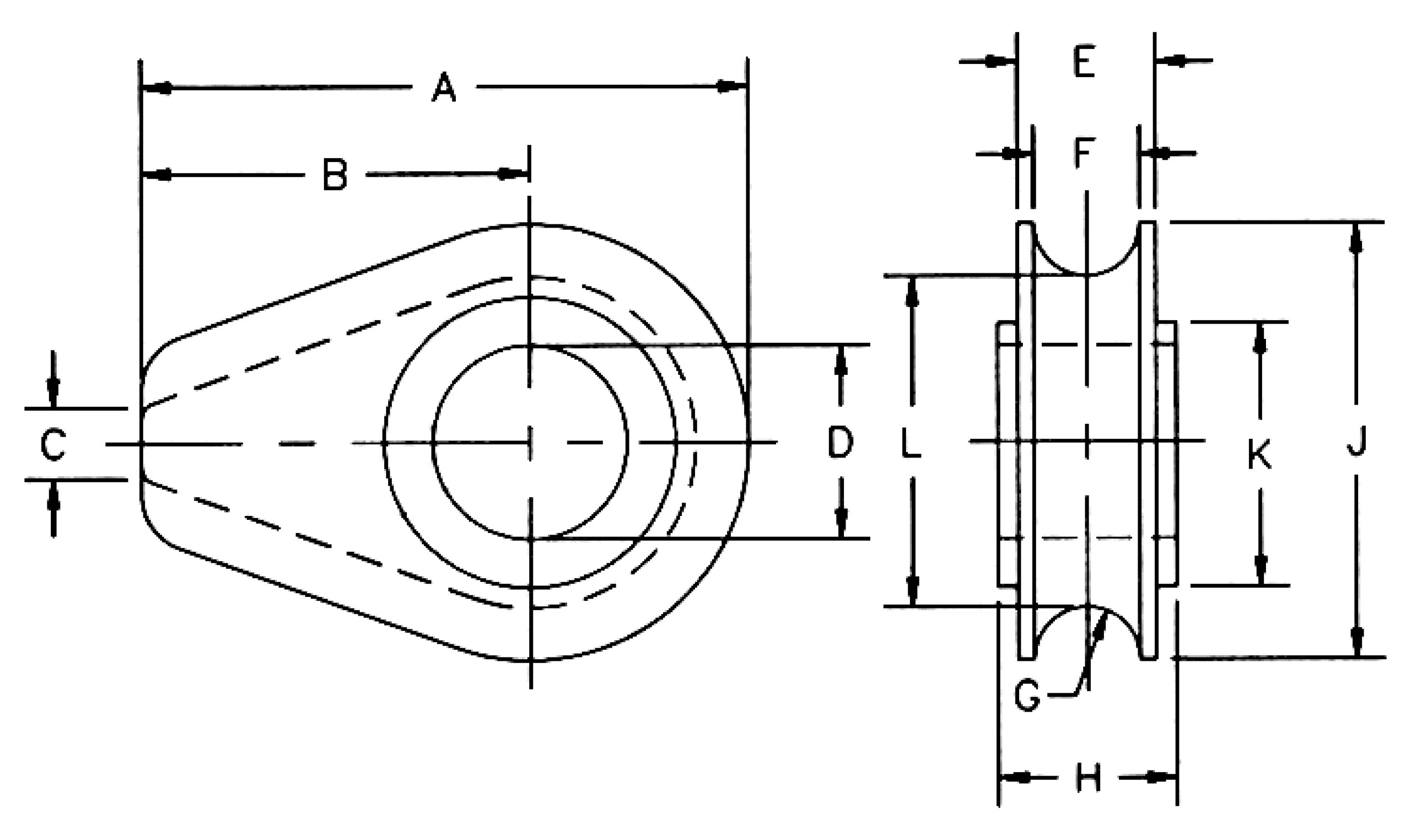

Crosby S-412 Solid Thimble_sketch
Select a row from the table below, then click the add to quote button
Art No A (mm) B (mm) C (mm) D (mm) D tolerance E (mm) F (mm) G (mm) H (mm) J (mm) K (mm) L (mm) Rope dia (mm) Weight CAD
04D0696 71.5 44.5 6.35 26.9 +-5% 19.1 14.2 7.1 22.4 54 41.4 39.6 13 0.28
10.271037149 119 76 9.65 33.3 +-4% 26.9 20.6 10.4 28.7 86 57 65 16 1
10.271037167 119 76 9.65 38.1 +-3% 26.9 20.6 10.4 35.1 86 57 65 18-20 1.05
10.271037201 154 97 12.7 54 +-3% 35.1 26.9 13.5 46 114 82.5 87.5 24-26 2.38
10.271037185 154 97 12.7 44.5 +-3% 35.1 26.9 13.5 41.4 114 82.5 87.5 22 2.47
10.271037229 184 116 16 60.5 +-2% 44.5 33.3 16.8 52.5 137 98.5 103 28-30 4.21
04D0695 184 116 16 67 +-2% 49.3 38.9 19.8 58.5 137 98.5 105 32-35 4.45

The D measurement is the “raw” D and can be drilled to a larger D on request.
