Crosby


Secures the tail or “dead end” of the wire rope to the wedge, thus eliminates loss or “Punch out” of the wedge.
Eliminates the need for an extra piece of rope, and is easily installed.
The TERMINATOR™ wedge eliminates the potential breaking off of the tail due to fatigue.
The tail, which is secured by the base of the clip and the wedge, is left undeformed and available for reuse.
Incorporates Crosby’s patented QUIC-CHECK™ “Go” and “No-Go” feature cast into the wedge.
Utilises standard Crosby Red-U-Bolt wire rope clip.
Generates a minimum efficiency of 80% based on the catalogue breaking strength of the wire rope.




Standard:EN 13411-6

  • Features: Pin diameter and jaw opening allows wedge and socket to be used in conjunction with open swage and spelter sockets.
  • Material: Cast Steel
  • Marking: ID code and Manufacturer's symbol
  • Finish: Painted
  • Safety factor: 5:1
Crosby Terminator

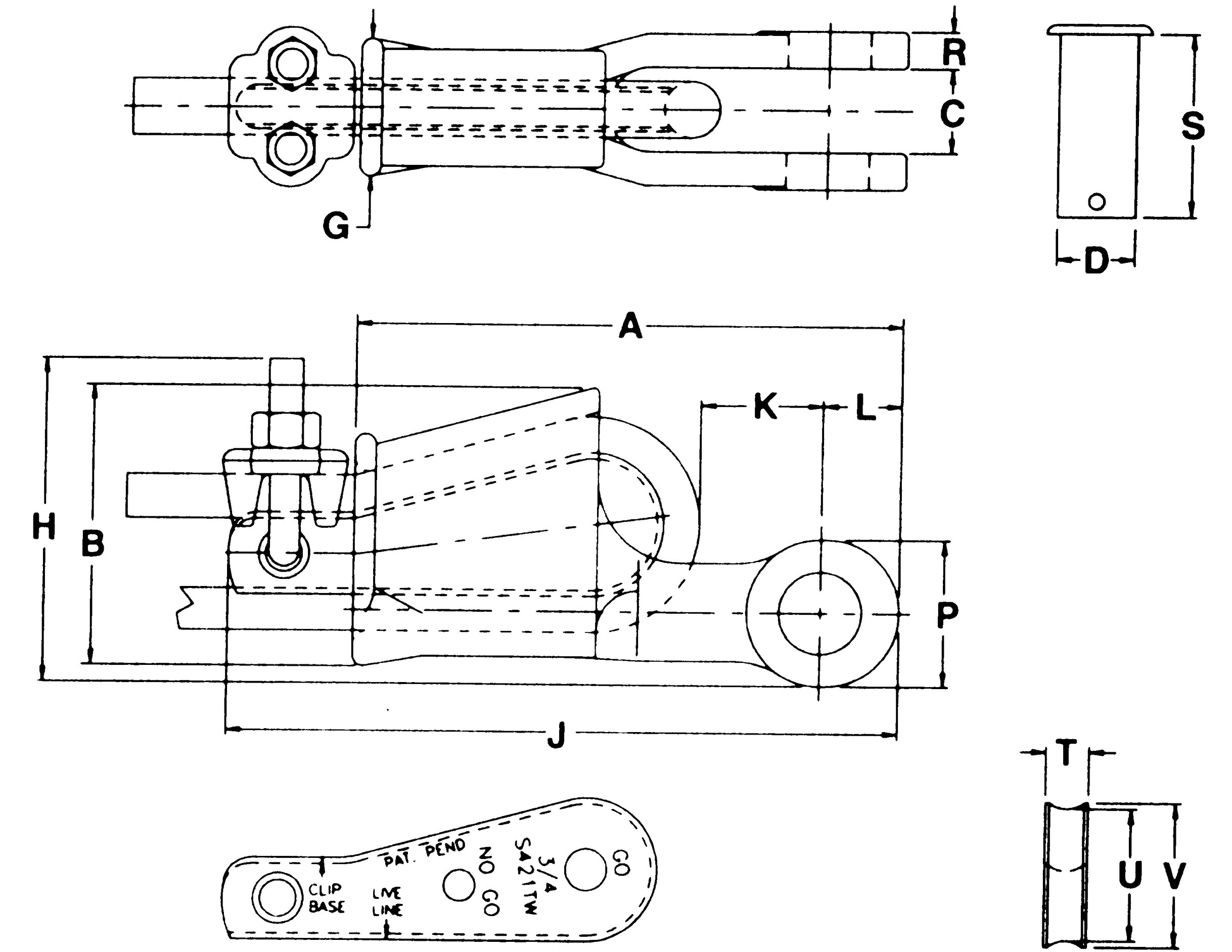

Crosby Terminator Wedge Sockets sketch
Select a row from the table below, then click the add to quote button
Art No Diameter (mm) A (mm) B (mm) C (mm) D (mm) G (mm) H (mm) J* (mm) K* (mm) L (mm) P (mm) R (mm) S (mm) T (mm) U (mm) V (mm) Diameter (mm) Weight
kg
04A0060 1 324 129 50.8 50.8 73.2 178 403 68.8 50.8 95.3 22.4 118 26.2 73.2 83.3 24-26 16.37
04A0070 28 365 140 57.2 57.2 84.1 197 450 63.5 57.2 108 25.4 137 30.2 79.5 90.4 11/8 24.09
04A0010 143 70.4 20.6 20.6 35.1 79.2 187 40.6 22.4 39.6 11.2 54.1 11.2 31.8 35.1 9-10 1.66
04A0020 173 90.2 25.4 25.4 41.1 97.8 222 30.7 26.9 49.3 12.7 62 13.5 44.5 47.8 11-13 3.25
04A0030 207 111 31.8 30.2 53.8 116 263 41.6 31 57.2 14.2 79.5 17.5 50.8 55.6 14-16 5.2
04A0040 248 122 38.1 35.1 62 136 306 55.1 35.6 66.5 16.8 92.2 19.8 59.4 65 18-19 7.74
04A0050 283 118 44.5 41.4 68.3 160 356 56.4 42.2 79.2 19.1 106 22.4 68.3 74.7 20-22 11.57
04A0080 406 202 63.5 63.5 90.4 - - 86.1 63.5 121 28.4 148 33.3 85.9 96.8 30-32 29.16
