Features: The patented wedge socket termination solution is intended to be used with a high-tensile compacted stainless wire rope. The wedge socket termination gives, together with most wire ropes, a remaining strength of 80% of the wire rope's minimum breaking load. The wire rope end is secured with a wire clamp against the wedge, this prevents the wedge to come loose or be knocked out.



  • Features: The patented wedge socket termination solution is intended to be used with a high-tensile compacted stainless wire rope. The wedge socket termination gives, together with most wire ropes, a
  • Material: Cast Steel
  • Marking: ID code and manufacturer's symbol.
  • Standard: EN 13411-6
Crosby_super_terminator_S423T
S423TB.29

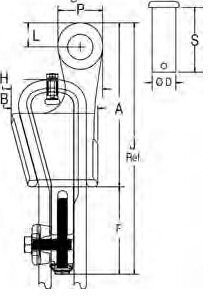

Super Terminator drg2
Select a row from the table below, then click the add to quote button
Art No Diameter
mm

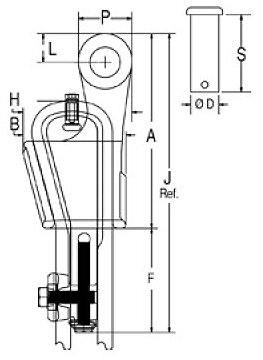

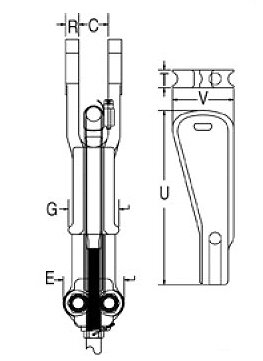

A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) J (mm) L (mm) P (mm) R (mm) S (mm) T (mm) U (mm) V (mm) Diameter
mm
Wire rope dia. (inch) Weight
kg
CAD
10.201035254 28 365 176 57,2 57,2 102 174 85,9 198 539 57,4 108 25,4 138 31,8 300 107 1-1/8 26
10.201035218 210 114 31,8 30,2 76,2 103 54,1 117 313 31 57,2 14,2 82,6 19,1 175 66 14-16 5/8 5.8
10.201035227 251 132 38,1 35,1 82,6 122 62,0 136 373 35,6 66,5 16,8 92,2 22,4 194 76.7 18-19 3/4 8.8
10.201035236 286 149 44,5 41,4 96,8 146 68,3 156 431 42,4 79,5 19,1 109 25,4 241 88.1 20-22 7/8 13
10.201035245 325 167 50,8 50,8 96,8 146 74,7 179 471 51,1 95,3 22,4 119 28,7 264 97 24-26 1 17
10.201035272 415 219 66,5 63,5 114 197 90,7 238 612 59,4 114 26,9 168 35,1 352 148 30-32 1-1/4 40
