Ropeblock

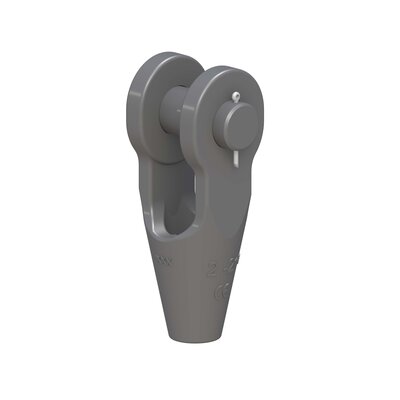

General: Forged clevis fittings for embedment with cast compound. Delivered complete with bolt and cotter pin.




WARNING!:Compare the spelter's and the wire rope's minimum breaking load.

  • Finish: Galvanized.
  • Note: For intermediate rope diameter select fittings with nearest following size.
    G1_e_225mm

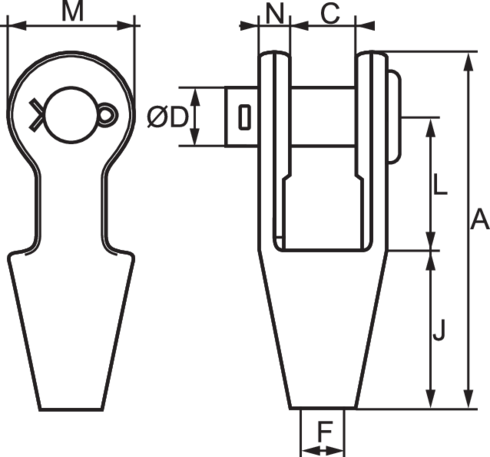

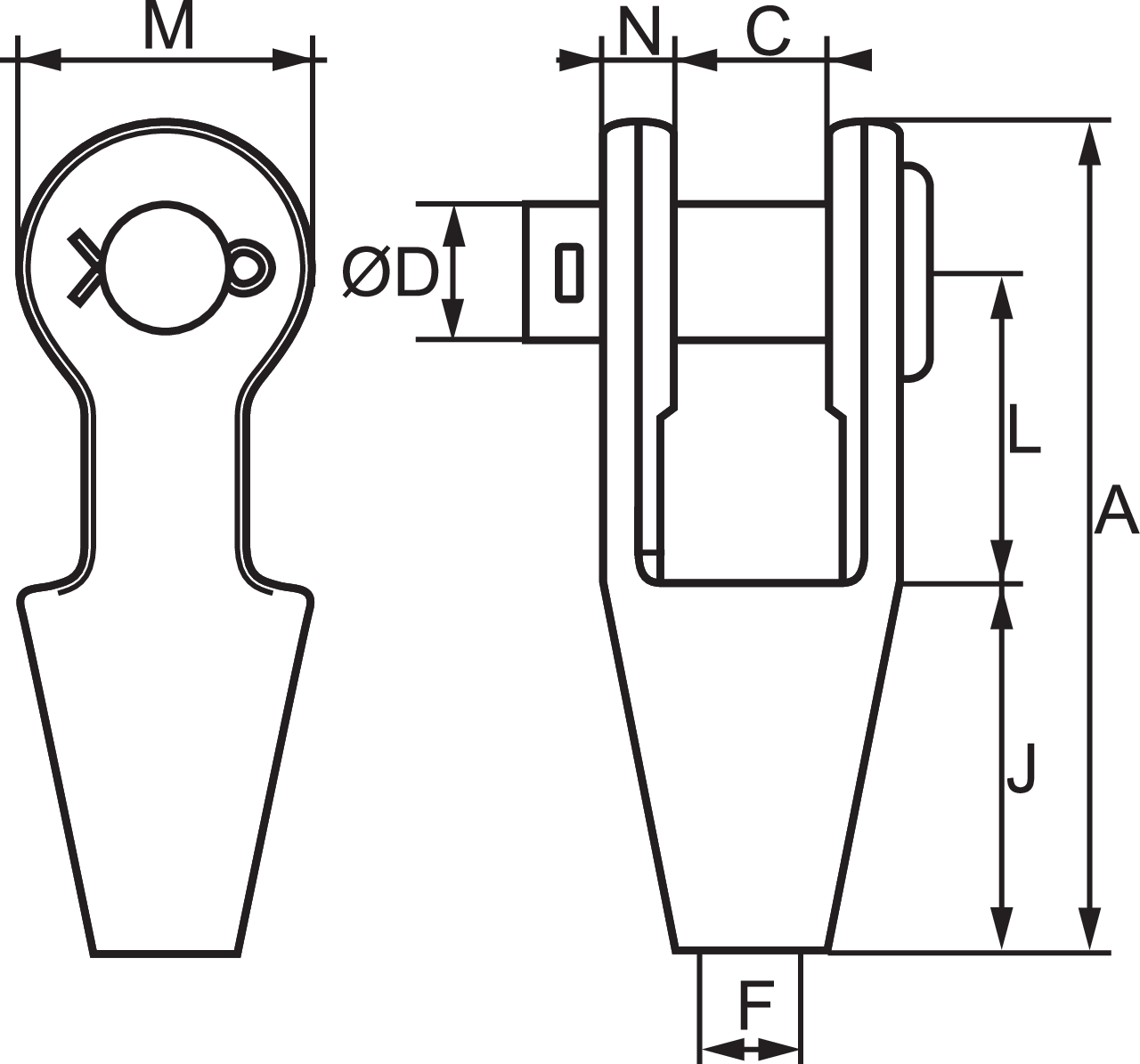

    g1m_micke_225mm
    Select a row from the table below, then click the add to quote button
    Part Code Code Rope diameter
    mm
    MBL
    ton
    Finish N
    mm
    A
    mm
    C
    mm
    D
    mm
    F
    mm
    J
    mm
    L
    mm
    M
    mm
    Weight
    kg
    -- OSS-196 P 6-7 8 Galvanized 9 109 19 16 8,5 50 40 34 0,4
    -- OSS-197 P 8-10 12 Galvanized 11 124 21 20,6 12 57 45 42 0,8
    -- OSS-198 P 11-13 20 Galvanized 12 142 25 25 14 64 51 50 1
    -- OSS-199 P 14-16 25 Galvanized 14 171 32 30 17,5 76 63 58 1,8
    -- OSS-100 P 18-19 40 Galvanized 16 205 38 35 21 89 76 70 3,2
    -- OSS-104 P 20-22 55 Galvanized 19 235 44 41 24 101 89 80 4,6
    -- OSS-108 P 23-26 75 Galvanized 22 275 51 51 28 114 101 104 8
    -- OSS-111 P 27-30 90 Galvanized 25 306 57 57 32 127 114 114 11
    -- OSS-115 P 31-36 125 Galvanized 28 338 63 63 38 139 127 126 16
    -- OSS-118 P 37-39 150 Galvanized 30 394 76 70 41 152 162 142 23
    -- OSS-120 P 40-42 170 Galvanized 33 418 76 76 44 165 165 152 27
    -- OSS-125 P 43-48 225 Galvanized 39 468 89 89 51 190 178 176 41
    -- OSS-128 P 49-54 280 Galvanized 46 552 101 95 57 216 228 194 58
    -- OSS-130 P 55-60 360 Galvanized 53 598 113 108 63 228 250 210 85
