Crosby

Standard: Fed Spec RR-S-550D TYPE A.

  • Features: Spelter socket terminations have an efficiency rating of 100%, based on the catalogue strength of wire rope.
  • Material: Forged steel sockets through 11/2”, cast alloy steel 1-5/8” through 4”.
  • Marking: ID code and Manufacturer's symbol.
  • Finish: Galvanised.
  • Safety factor: 5:1.
Crosby G-416 Open Spelter Socket
Crosby G416 SPELTER SOCKET
Select a row from the table below, then click the add to quote button
Part Code WLL
ton

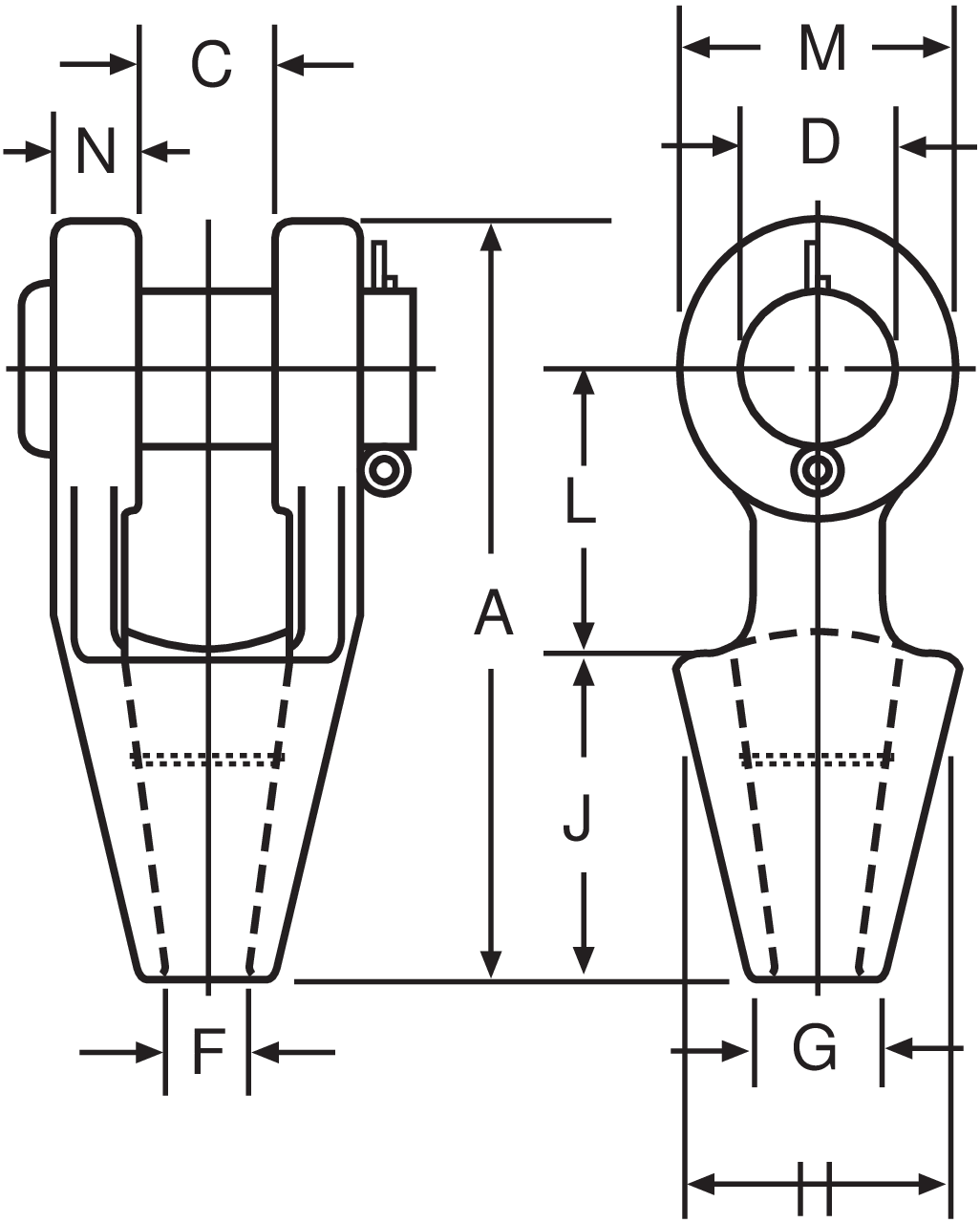

Rope dia. (inch) Rope dia (mm) A (mm) C (mm) D (mm) F (mm) G (mm) H (mm) J (mm) L (mm) M (mm) N (mm) Weight
kg
04A0170 4.5 1/4 6-7 116 19.1 17.5 9.65 17.5 39.6 57 39.6 33.3 9.1 0.5
04A0180 12 5/16 - 3/8 8-10 123 20.6 20.6 12.7 20.6 42.9 57 44.5 38.1 11.2 0.59
-- 20 7/16 - 1/2 11-13 141 25.4 25.4 14.2 23.9 47.8 63.5 51 47.8 12.7 1.02
-- 27 9/16 - 5/8 14-16 171 31.8 30.2 17.5 28.7 57 76 63.5 57 14.2 1.863
-- 43 3/4 18 202 38.1 35.1 20.6 31.8 66.5 89 76 66.5 15.7 2.64
-- 55 7/8 20-22 235 44.5 41.4 23.9 38.1 82.5 102 89 79.5 20.3 4.438
-- 78 1 24-26 268 51 51 28.7 44.5 95.5 114 102 95.5 22.4 7.03
-- 92 1 1/8 28-30 300 57 57 31.8 51 105 127 117 105 25.4 9.75
-- 136 1 1/4 - 1 3/8 32-35 335 63.5 63.5 38.1 57 121 140 127 121 28.7 14.1
-- 170 1 1/2 38 384 76 70 41.4 70 133 152 152 137 30.2 21.4
-- 188 † 1 5/8 40-42 413 76 76 44.5 76 140 165 165 146 33.3 24.9
-- 268 † 1 3/4 - 1 7/8 44-48 464 89 89 51 79.5 162 191 178 165 39.6 37.2
-- 291 † 2 - 2 1/8 50-54 546 102 95.5 57.2 95.5 187 216 229 178 46 59
-- 360 † 2 1/4 - 2 3/8 56-60 597 114 108 63.5 102 210 229 254 197 54 76
-- 424 † 2 1/2 - 2 5/8 64-67 648 127 121 73 114 235 248 274 216 60.5 114
-- 511 † 2 3/4 - 2 7/8 70-73 692 133 127 79 124 267 279 279 229 73 143
-- 563 † 3 - 3 1/8 75-80 737 146 133 86 133 282 305 287 241 76 172
-- 722 † 3 1/4 - 3 3/8 82-86 784 159 140 92 146 302 330 300 254 79 197
-- 779 † 3 1/2 - 3 5/8 88-92 845 171 152 98.5 165 314 356 318 274 82.5 255
-- 875 † 3 3/4 - 4 94-102 921 191 178 108 184 346 381 343 318 89 355
† Cast alloy steel.
