Green Pin


Standard: generally to EN 13411-6

  • Material: high tensile steel
  • Temperature range: -20°C up to +200°C
  • Finish: hot dipped galvanized
Product Image 1
Product Image 2
Select a row from the table below, then click the add to quote button

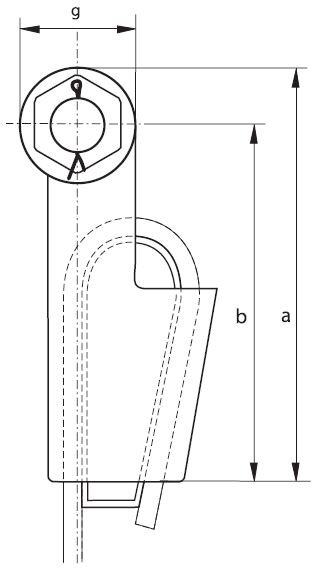

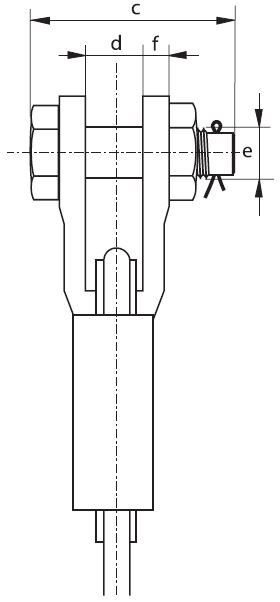

length a width inside d Number width c (mm) Wire rope dia. (mm) diameter eye g (mm) diameter pin e (mm) MBL length to center pin b (mm) thickness side plates f mm Weight
kg
128 18 0.25 69 7 - 8 36 16 8 110 9 0.8
165 20.5 0.5 83 9 - 10 46 20 12 142 11 1.5
175 25 1 101 11 -13 57 25 20 146 12 2.4
211 31 2 124 14 - 16 70 30 25 176 15 4.8
252 38 3 138 18 - 19 80 35 40 212 16 8.3
288 44 4 148 20 -22 95 41 55 240 19 11
329 51 5 176 24 - 26 110 50 75 274 22 17.9
375 57 6 193 27 - 29 130 57 90 310 25 21
423 63 7 210 30 - 32 146 63 110 350 28 33
474 69 8 216 34 - 36 148 65 125 400 28 42
527 76 9 230 37 - 39 153 70 150 450 30 52
580 76 10 244 40 - 42 160 77 170 500 33 73
