Ropeblock

General: Forged eye fittings for embedment with cast compound.




WARNING!:
Compare the spelter's and the wire rope's minimum breaking load.

  • Finish: Galvanized.
  • Note: For intermediate rope diameter select fittings with nearest following size.
G71_e_225mm
G71M_e_225mm
Select a row from the table below, then click the add to quote button

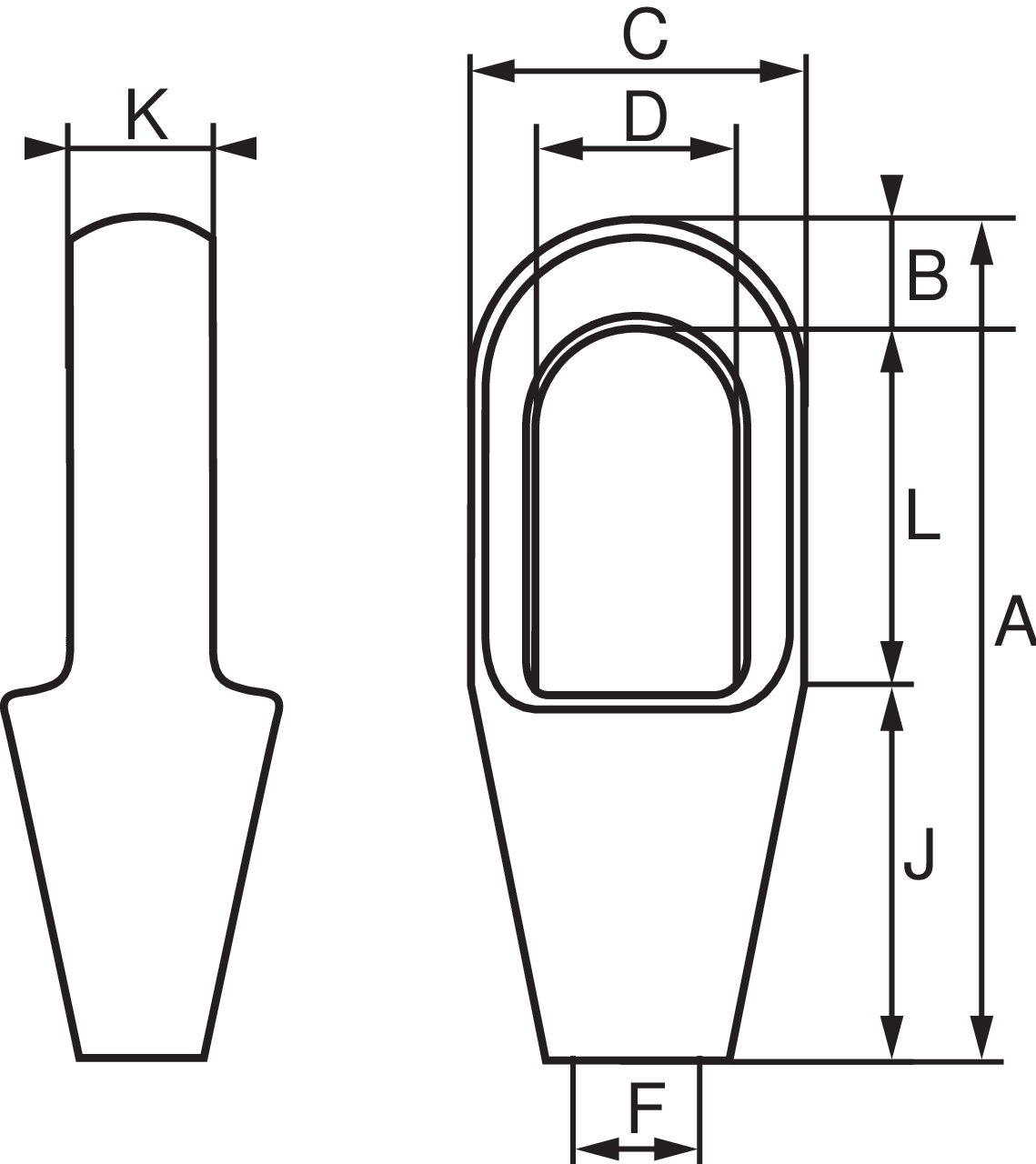

Art No Code MBL (ton) A (mm) B (mm) C (mm) D (mm) F (mm) J (mm) K (mm) L (mm) Diameter (mm) Stock Code Weight kg
10.10CSS200G G-75 40 194 27 76 42 21 89 32 78 18-19 04A0220 2.1
10.10CSS201G G-76 55 224 33 92 47 24 101 38 90 20-22 04A0230 3.6
10.10CSS204G G-77 75 253 36 104 57 28 114 44 103 23-26 04A0240 5.3
10.10CSS207G G-78 90 282 39 114 63 32 127 51 116 27-30 04A0250 7
10.10CSS212G G-79 125 312 43 127 70 38 139 57 130 31-36 04A0260 9.7
10.10CSS215G G-80 150 358 51 136 79 41 152 63 155 37-39 04A0270 13
10.10CSS217G G-81 170 390 54 146 83 44 165 70 171 40-42 17
10.10CSS219G G-82 225 443 55 171 93 51 190 76 198 43-48 26
10.10CSS222G G-83 280 502 62 193 100 57 216 82 224 49-54 37.5
10.10CSS224G G-84 360 548 73 216 112 63 228 92 247 55-60 50
10.10CSS296G G-71 8 101 11 37 22 8,5 50 13 40 6-7 0.3
10.10CSS297G G-72 12 119 14 43 25 12 57 17,5 48 8-10 04A0190 0.5
10.10CSS298G G-73 20 140 17,5 51 30 14 63,5 22,5 59 11-13 04A0200 0.7
10.10CSS299G G-74 25 162 20,6 67 36 17,5 76 26 65 14-16 04A0210 1.3
