Crosby

McKissick Closed spelter socket for steel wire rope ø 8 mm up to ø 102 mm. Spelter socket terminations have an efficiency rating of 100%, based on the catalogue strength of wire rope.

Features:

  • Forged Steel Sockets through 38 mm, cast alloy steel 40 mm through 102mm.
  • All cast steel sockets 40 mm and larger are magnetic particle inspected and ultrasonic inspected.
  • Proof testing available on special order.
  • Spelter socket terminations have an efficiency rating of 100%, based on the catalog strength of wire rope.
  • Ratings are based on recommended use with 6x7, 6x19, or 6x37, IPS or XIP (EIP), XXIP (EEIP), RRL, FC, or IWRC wire rope.
  • Strand constructed with minimal number of wires (e.g. 1x7) requires special consideration that socket basket length be five (5) times the strand diameter or fifty (50) times the wire diameter , whichever is the greater.
  • Also available in self-coloured / ungalvanized version on request.

Standard: Fed Spec RR-S-550D TYPE B.

  • Material: Forged steel from wire rope ø 8mm up to 38mm. From ø 40mm Cast Alloy steel.
  • Marking: ID code and Manufacturer's symbol.
  • Finish: Galvanized.
  • Safety factor: 5:1
Crosby G-417 Closed Spelter Socket
Crosby G-417
Select a row from the table below, then click the add to quote button

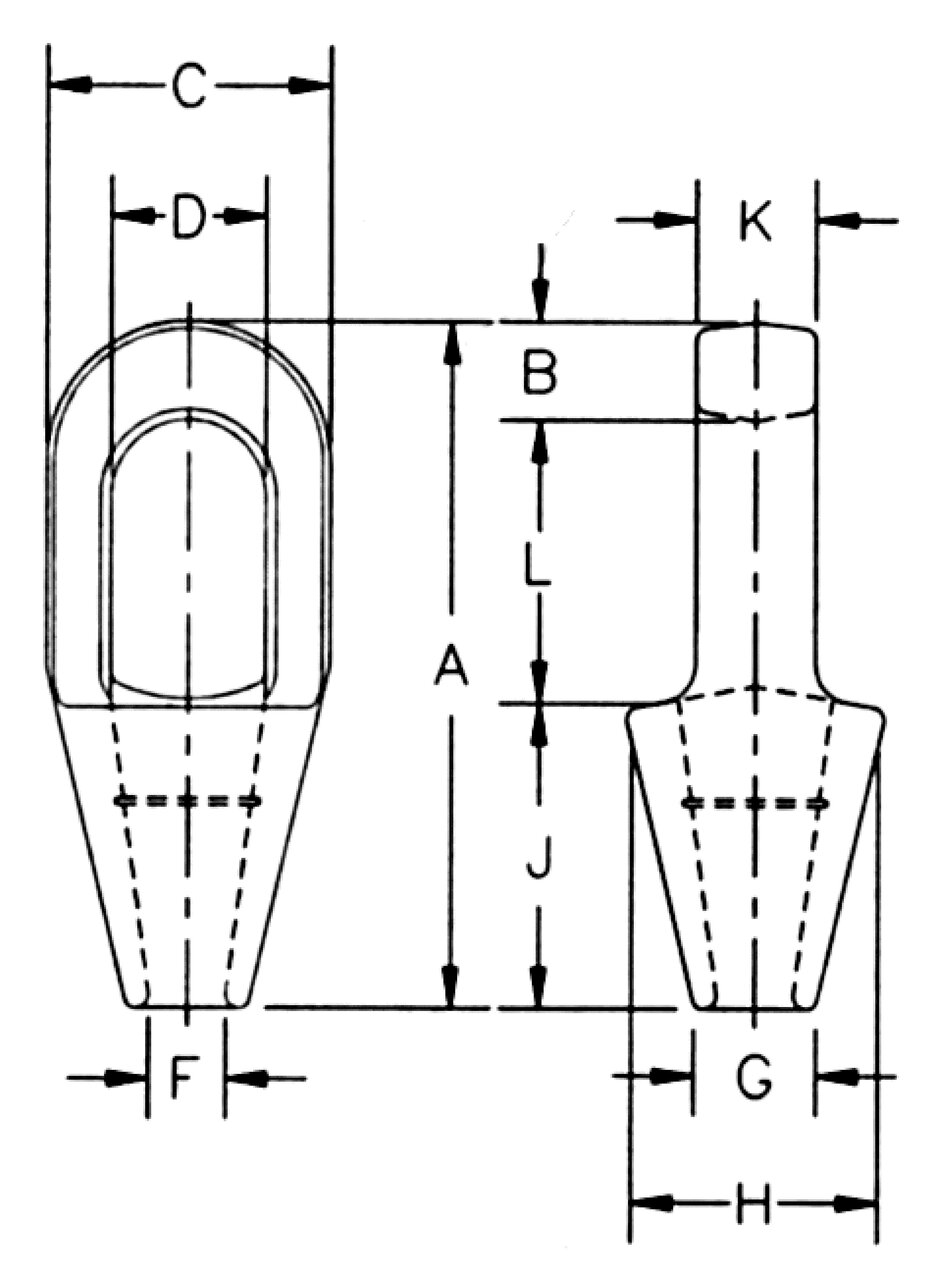

Part Code Rope diameter
mm
WLL
ton
Rope dia.
inch
A
mm
B
mm
C
mm
D*
mm
F
mm
G
mm
H
mm
J
mm
K
mm
L
mm
Weight
kg
CAD
-- 6-7 4,5 1/4 116 12,7 39,6 22,4 9,65 17,5 39,6 57,2 12,7 46 0,23 -
-- 8-10 12 5/6 -3/8 125 15,8 42,9 24,6 12,7 20,6 42,9 57,2 17,5 52,5 0,34 -
-- 11-13 20 7/16-1/2 140 17,5 51 29,5 14,2 23,9 51 63,5 22,4 58,7 0,68 -
-- 14-16 30,8 9/16-5/8 162 20,6 67 35,8 17,5 30,2 67 76,2 25,4 65 1,13 -
-- 18 43,5 3/4 194 26,9 76,2 42,2 22,4 33,3 70 89 31,8 77,5 1,92 -
-- 20-22 65,3 7/8 226 33,3 92 49,3 25,4 38,1 82,5 102 38,1 90,5 3,28 -
-- 24-26 81,6 1 254 36,6 105 58,5 28,7 44,5 95,5 114 44,5 103 4,76 -
-- 26-30 100 1 1/8 283 39,6 114 65 31,8 51 105 127 51 116 6,46 -
-- 32-35 136 1 1/4-1 3/8 309 41,4 127 71 38,1 58,5 119 138 56,5 129 8,95 -
-- 38 170 1 1/2 355 49,3 137 81 41,4 70,5 132 151 62,5 155 13,2 -
-- 40-42 188 1 5/8 390 54 146 82,5 44,5 76,2 140 165 70 171 16,3 -
-- 44-48 268 † 1 3/4-1 7/8 445 55,5 171 95,5 51 79,5 162 191 76,2 198 26 -
-- 50-54 309 † 2-2 3/8 505 62 194 111 57,2 95,5 187 216 82,5 224 35,8 -
-- 56-60 360 † 2 1/4 - 2 3/8 546 70 216 127 66,8 105 210 229 92 254 47,6 -
-- 64-67 424 † 2 1/2 - 2 7/8 597 79,5 241 140 74,5 114 235 248 102 270 64 -
-- 70-73 549 † 2 3/4 - 2 7/8 645 79,5 273 159 79,5 124 259 279 124 286 100 -
-- 75-80 656 † 3 - 3 1/8 689 85,6 292 171 86 133 292 305 133 298 125 -
-- 82-86 750 † 3 1/4 - 3 3/8 743 102 311 184 92 146 311 330 146 311 142 -
-- 88-92 820 † 3 1/2 - 3 5/8 787 102 330 197 98,5 165 330 356 159 330 181 -
-- 94-102 1 005 † 3 3/4 - 4 845 108 362 216 108 184 362 381 178 356 246 -

Rated WLL = Ultimate load - WLL depending on WLL of used steel wire rope.
* Diameter of pin must not exceed pin used on companion 416 socket.
† Cast alloy steel.
