Standard: EN 13411-7

  • Features: Wedge Suspension kit Type D with Eyebolt, Spring, nuts and split pin
  • Material: Galvanised Steel
  • Marking: Size and CE mark
  • Finish: Galvanised
  • Standard: EN 13411-7
15315_d_lom_new_225mm
3050_screw_Dm_225mm(1)
Select a row from the table below, then click the add to quote button

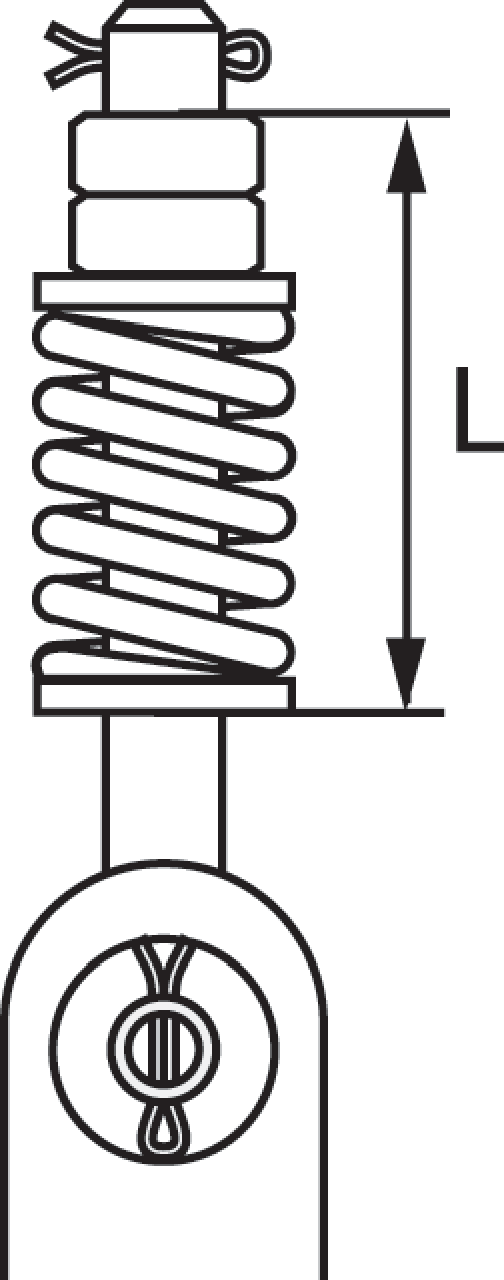

Art No Code L (mm) Diameter
mm
Weight
kg
CAD
10.21SS10608D0320315 3070 167 6-8 1.4
04G0050 320 6-8 1.6
10.21SS10911D0320315 3071 173 9-11 2.4
04G0060 320 9-11 3
10.21SS11214D0400315 3072 202 12-14 4.7
04G0070 300 12-14 5.2
04G0080 400 12-14 5.7
04G0090 500 12-14 6.2
04G0100 600 12-14 6.7
10.21SS11517D0450315 3073 248 15-17 8.2
04G0105 600 15-17 10.1
10.21SS11820D0500315 3074 254 18-20 11
