Standard: EN 13411-7





  • Features: Wedge Suspension kit Type A with Eyebolt nuts and split pin
  • Material: Galvanised Steel
  • Marking: Size and CE mark
  • Finish: Galvanised
  • Standard: EN 13411-7
15315_a_new_225mm

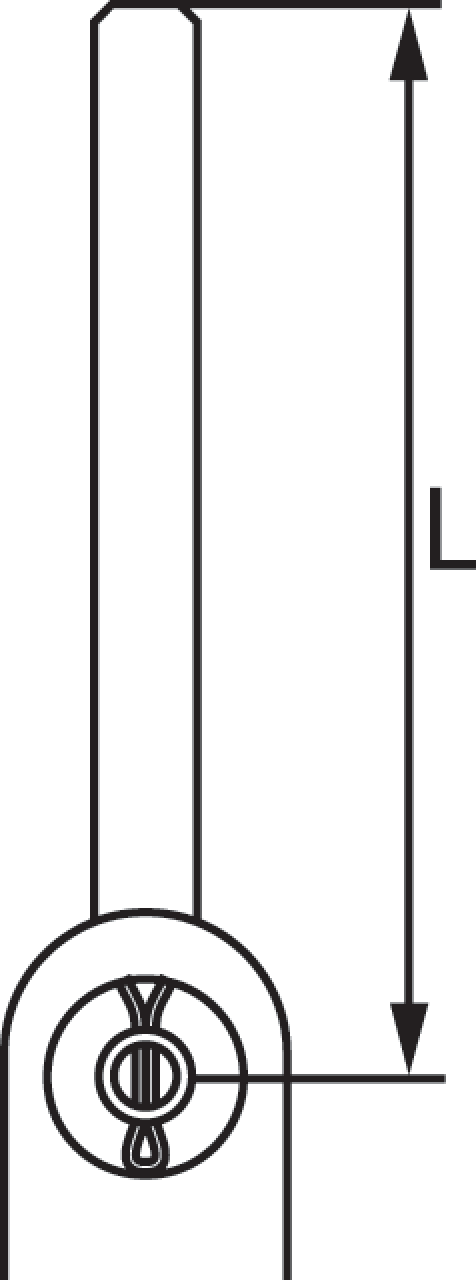

3050_screw_Am_225mm(1)
Select a row from the table below, then click the add to quote button
Art No Code L (mm) Thread Diameter
mm
Weight
kg
CAD
10.21SS10608A0320315 3060 320 M12 6-8 0.75
10.21SS10911A0320315 3061 320 M16 9-11 1.6
10.21SS11214A0400315 3062 400 M20 12-14 3.2
10.21SS11517A0450315 3063 450 M24 15-17 5.3
10.21SS11820A0500315 3064 500 M27 18-20 8.1
