• Not for lifting

General: Wire rope clips for steel wire rope for general applications.
Design: Forged U-bolt and casted bases.


  • Material: Bases AISI 316, u-bolt AISI 304.
  • Note: Follow the fitting instructions in the user manual before use.
kaus_ss
2001m_225mm
Select a row from the table below, then click the add to quote button

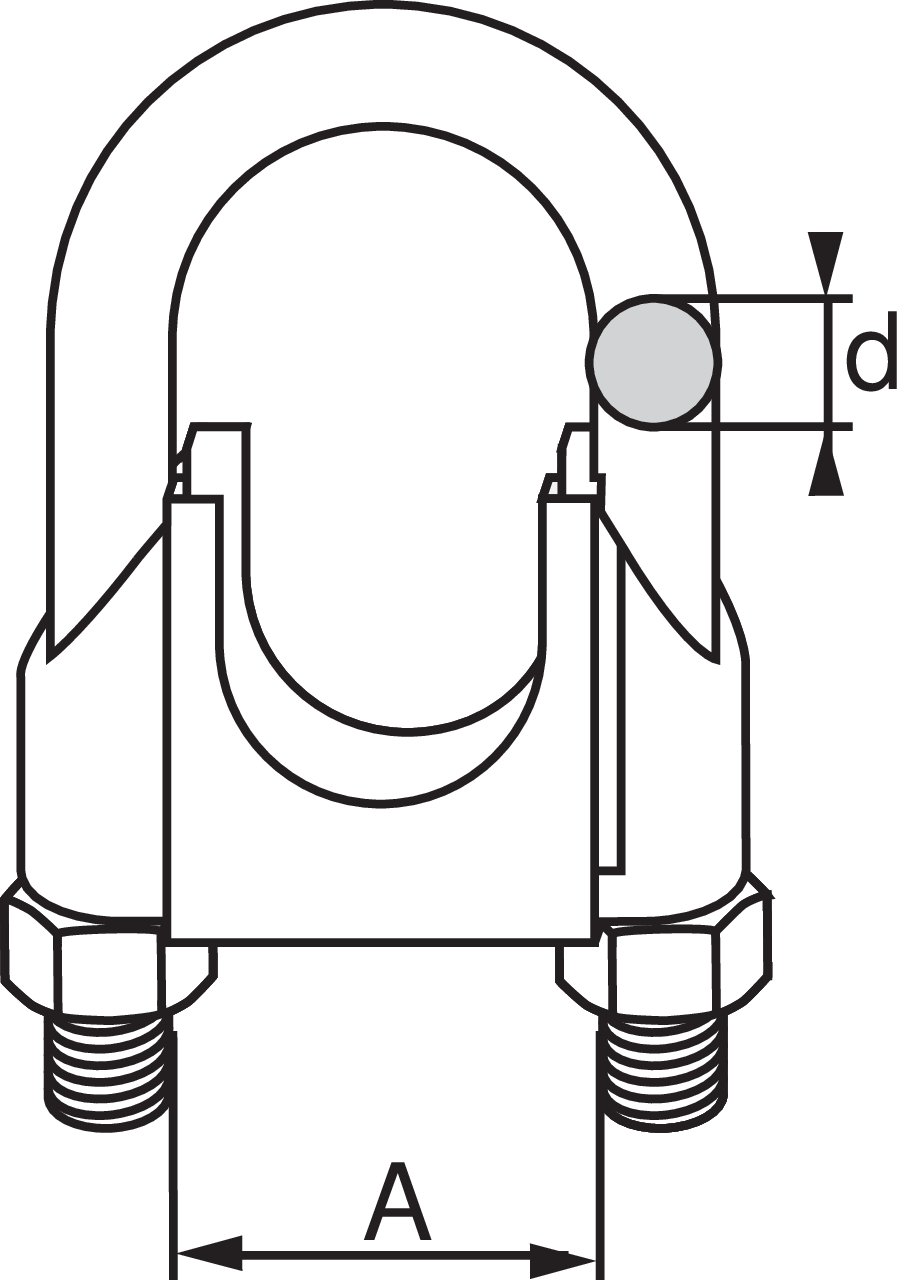

Part Code Diameter
mm
A
mm
D
mm
Weight
kg/100pc
04E0130 3 5 4 1.4
04E0140 5 6 5 1.5
04E0150 6 8 5 2.1
04E0160 8 10 6 4.1
04E0170 10 13 8 6.8
04E0180 12 14 10 13
-- 16 20 12 21
