Powertex






Standard: EN 1677-1

  • Features: Chain Shortening Clutch European Manufactured, Long service life.
  • Material: Grade 80 Alloy Steel
  • Marking: Manufacturer's symbol and Grade
  • Finish: Powder Coated
  • Safety factor: 4:1
  • Grade: 8
Kuppelverbinder KVS rot
ZE_Kuppelverbinder KVS
Select a row from the table below, then click the add to quote button

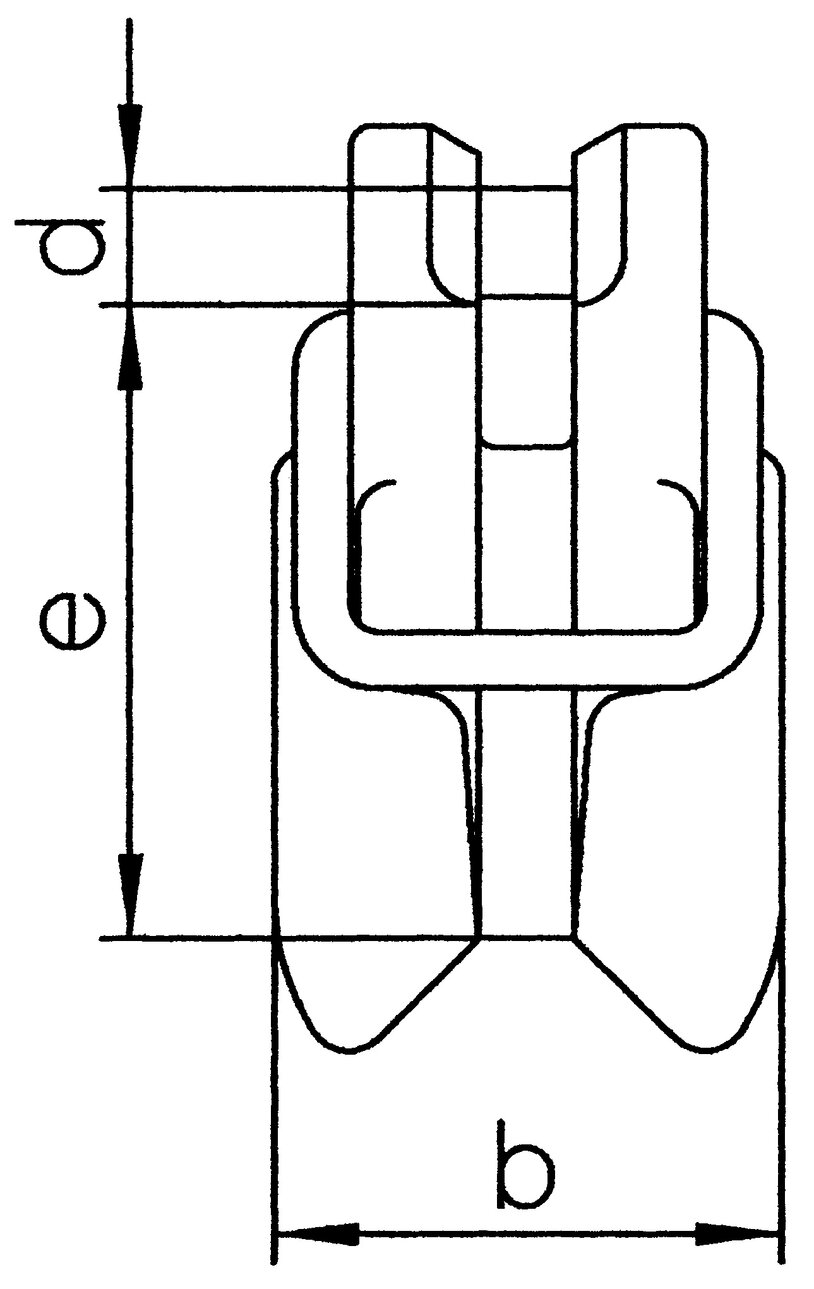

Part Code Code WLL
ton
Chain
mm
e
mm
b
mm
d
mm
Weight
kg
-- VKL 06.8 1.12 6 45 36 7.4 0.27
07B0230 VKL 07.8 1.5 7 58 44 9 0.5
-- VKL 08.8 2 8 58 44 10 0.5
07B0240 VKL 10.8 3.15 10 70 55 12.5 0.8
07B0250 VKL 13.8 * 5.3 13 90 70 16 1.53
Please note: Only load in lying chain! Only use with safety device! *) with cotter pin as security part - see image
