Powertex






Standard: EN 1677-4

  • Features:  Quad Chain Master Link European Manufactured, Long service life.
  • Material: Grade 80 Alloy Steel
  • Marking: Manufacturer's symbol and Grade
  • Finish: Powder Coated
  • Safety factor: 4:1
  • Grade: 8
KWB_Aufhängeköpfe mit weiss
KWB_ZE Aufhängeköpfe
Select a row from the table below, then click the add to quote button
Art No Code WLL
Ton

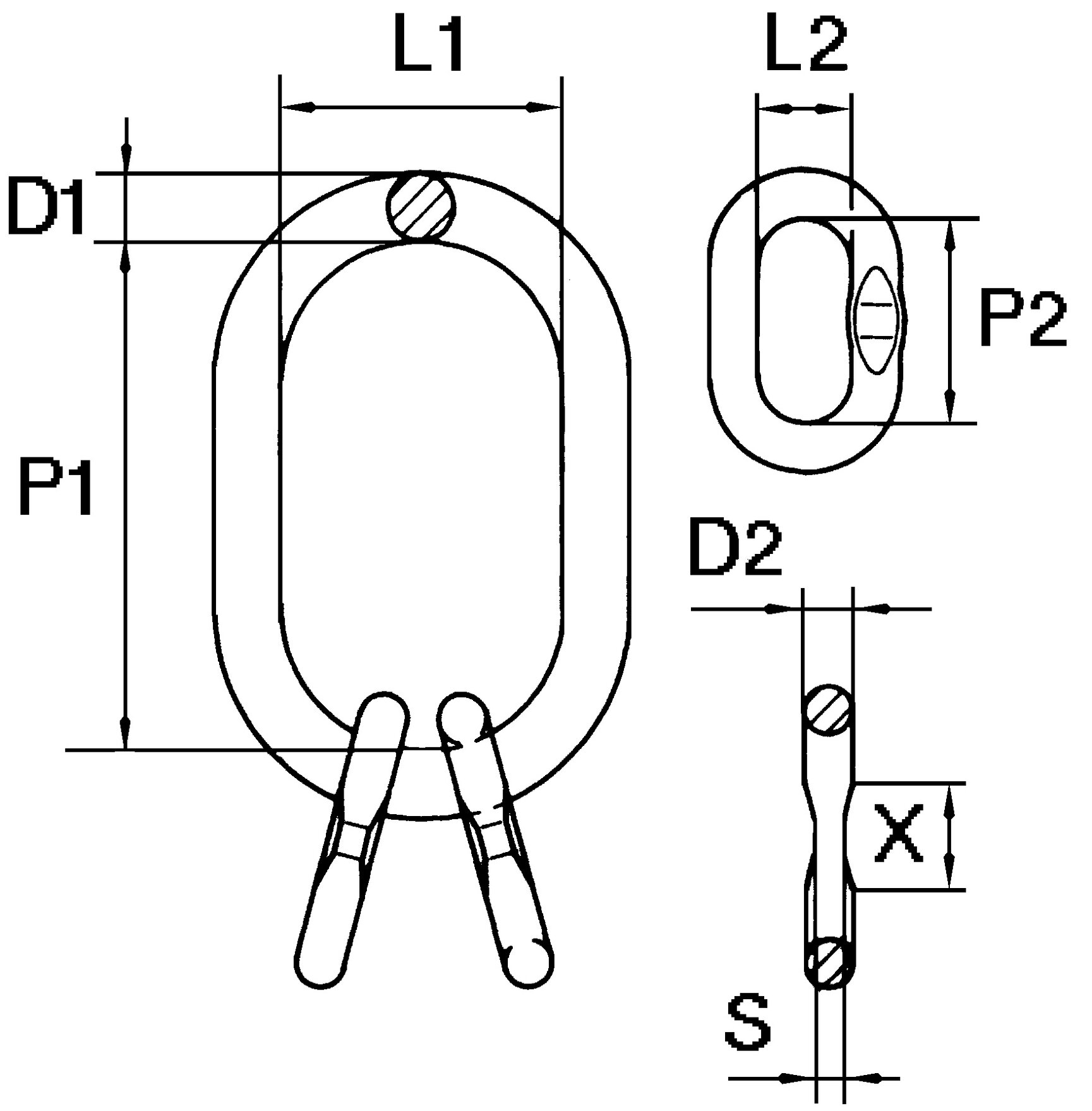

chain Ø (mm) D1 (mm) P1 (mm) L1 (mm) D2 (mm) P2 (mm) L2 (mm) SxX Weight
kg
CAD
07E0360 G 06/7.8 4.2 6+7 19 135 75 13 60 38 10x25 1.32
07E0370 G 08.8 7.6 8 23 160 90 16.5 70 34 14x25 2.32
07E0380 G 10.8 9.6 10 27 180 100 18.5 85 40 14x35 3.52
07E0390 G 13.8 11.8 13 33 200 110 23 115 50 17x35 6.26
G 16.8 19.7 16 36 260 140 27 140 65 20x45 9.86
G 18.8 30.7 18 45 340 180 33 150 70 - 18.92
G 20.8 34.1 20 50 350 190 33 150 70 - 22.65
G 22.8 40 22 50 350 190 36 170 75 - 25.19
G 26.8 54 26 60 400 200 40 170 80 - 38.01
G 32.8 76 32 70 460 250 50 200 100 - 66.6
*) Please refer to the chart "Working load limit of slings" for the working load limit for chain slings. Working load limit according to EN 818-4
