Powertex






Standard: EN 1677-4

  • Features: Grade 8 Chain Master Link European Manufactured, Long service life.
  • Material: Grade 80 Alloy Steel
  • Marking: Manufacturer's symbol and Grade
  • Finish: Powder Coated
  • Safety factor: 4:1
  • Grade: 8
KWB_Ovale aufhängeringe
KWB_ZE Aufhängeringe
Select a row from the table below, then click the add to quote button
Art No Code WLL
Ton

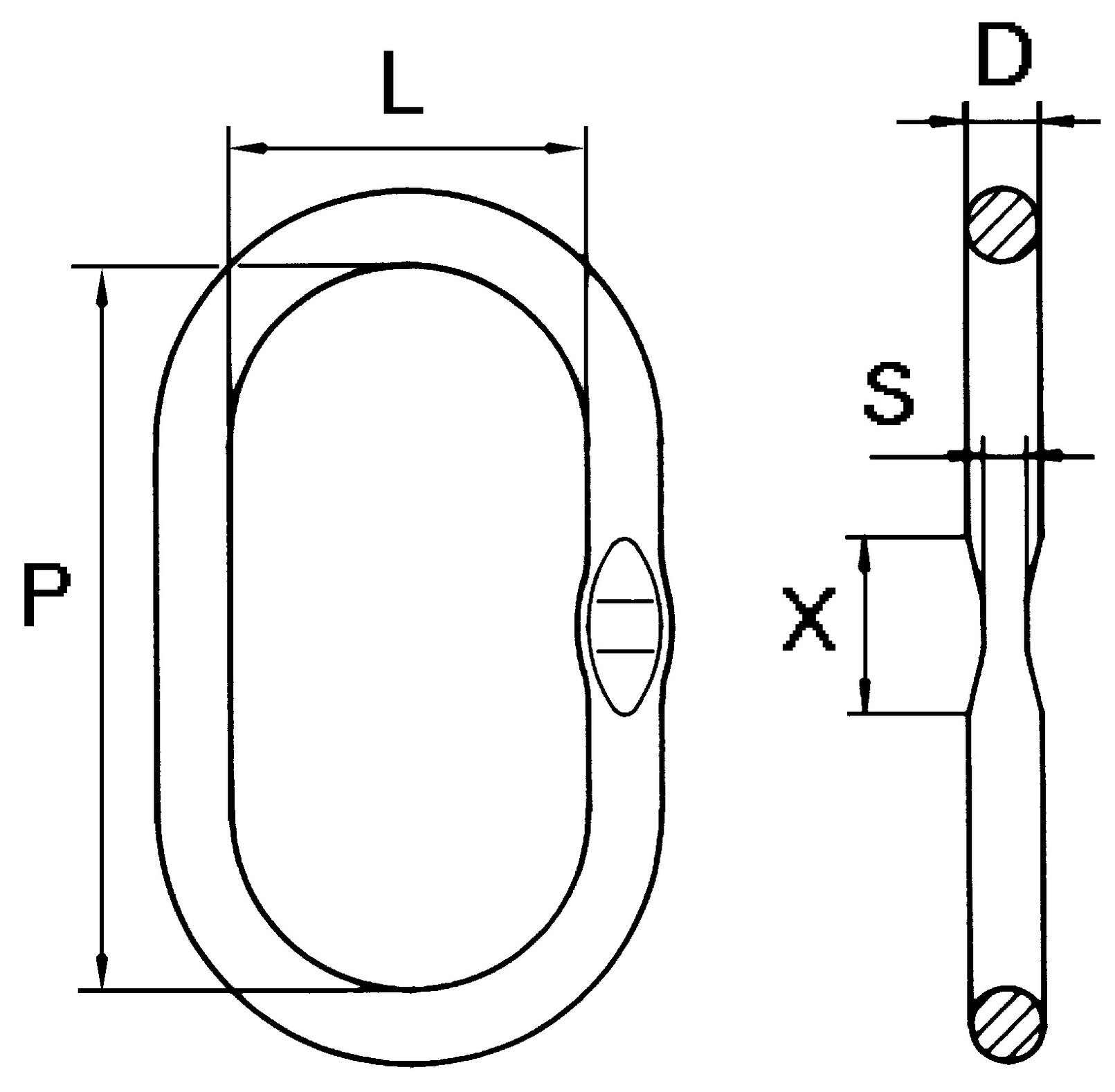

Chain Ø (mm) Single Leg Chain Ø (mm) Two Leg D (mm) P (mm) L (mm) SxX Weight
kg
CAD
07E0300 A 13 2.3 6+7 6 13 110 60 10x30 0.34
07E0310 A 16 3.5 8 7 16.5 110 60 14x25 0.53
07E0320 A 18 5 10 8 19 135 75 14x35 0.92
07E0330 A 22 7.6 13 10 23 160 90 17x35 1.6
07E0340 A 26 9.6 16 13 27 180 100 20x46 2.46
07E0350 A 32 11.8 18 16 33 200 110 26x46 4.14
A 36 25.1 20 18 36 260 140 - 6.22
A 36 25.1 22 20 36 260 140 - 6.22
A/T 45 30.8 26 22 45 340 180 - 12.82
A/T 50 40 32 26 50 350 190 - 16.55
A/T 56 60 36 32 60 400 200 - 27.01
A/T 56 60 40 36 60 400 200 - 27.01
*) Please refer to the chart "Working load limit of slings" for the working load limit for chain slings.Working load limit according to EN 818-4
