Powertex






Standard: EN 1677-1

  • Features:  Chain Connecting Link European Manufactured, Long service life.
  • Material: Grade 80 Alloy Steel
  • Marking: Manufacturer's symbol and Grade
  • Finish: Powder Coated
  • Standard: EN 1677-1
  • Safety factor: 4:1
  • Grade: 8
KWB_Verbindungsglied V
KWB_ZE Verbindungsglied V
Select a row from the table below, then click the add to quote button
Art No Code WLL
Ton

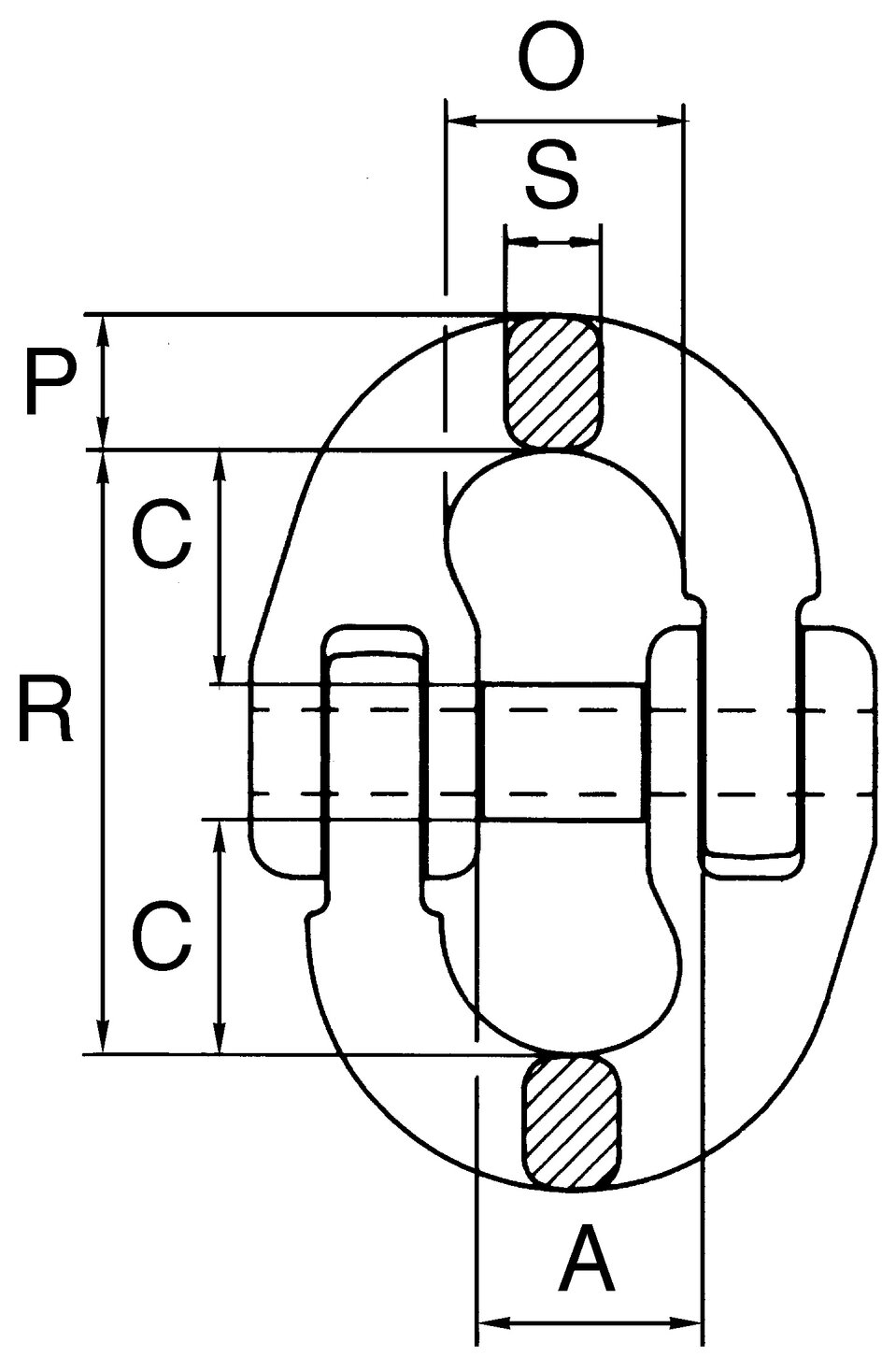

Chain (mm) A (mm) C (mm) O (mm) R (mm) P (mm) S (mm) Weight
kg
CAD
V 06.8 U 1.12 6 14.1 18 18 44.4 7.8 7.6 0.06
07E0100 V 07.8 U 1.5 7 16.3 20 20 51 10 9 0.12
V 08.8 U 2 8 18.35 25 23 61.5 11.5 10 0.18
07E0110 V 10.8 U 3.15 10 23 30 27 72 12.6 12.6 0.33
07E0120 V 13.8 U 5.3 13 27.6 36 34 88 19 16.7 0.7
07E0130 V 16.8 U 8 16 33 40 39 103 21 21 1.14
V 20.8 12.5 18+20 41.7 48 47 115 29.5 24.5 2.1
V 22.8 15 22 49 51 55 133 26.5 26.5 2.2
V 26.8 21.2 26 61 68 67 164 32 30 5.1
V 32.8 U 31.5 32 80 80 86 194 40 32 8.5
