Powertex






Standard: EN 818-2

  • Features: Grade 8 Short Link Chain, European Manufactured, Long service life.
  • Material: Grade 80 Alloy Steel
  • Marking: Manufacturer's symbol and Grade
  • Finish: Black painted
  • Safety factor: 4:1
  • Grade: 8
Kette Super Alloy schwarz
ZE_Kette
Select a row from the table below, then click the add to quote button

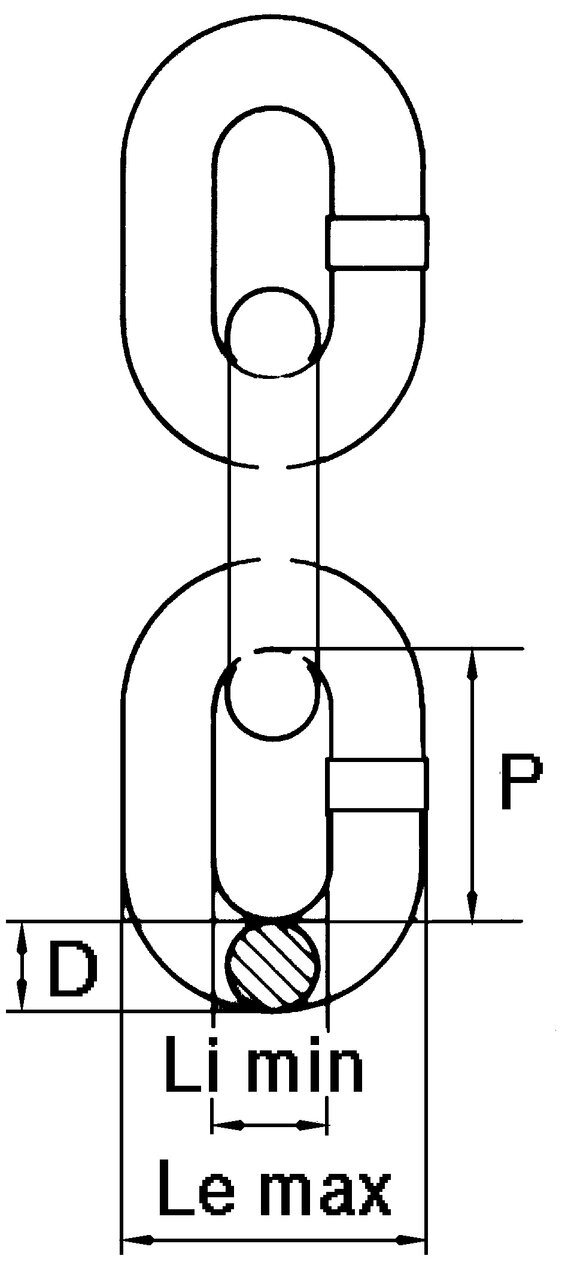

Art No Diameter (mm) P (mm) Breaking load (kn) Tolerance (mm) min. (mm) max. (mm) WLL (kg) Weight kg/m
6 18 45.2 ± 0.5 7.8 22.2 1.12 0.8
07A0040 7 21 61.6 ± 0.6 9.1 25.9 1.5 1.1
8 24 80.4 ± 0.7 10.4 29.6 2 1.4
07A0100 10 30 126 ± 0.9 13 37 3.15 2.2
07A0140 13 39 212 ± 1.2 16.9 48.1 5.3 3.8
07A0180 16 48 322 ± 1.4 20.8 59.2 8 5.7
18 54 407 ± 1.6 23.4 66.6 10 7.3
20 60 503 ± 1.8 26 74 12.5 9
22 66 608 ± 2.0 28.6 81.4 15 10.9
26 78 849 ± 2.3 33.8 96.2 21.2 15.2
32 96 1.29 ± 2.9 41.6 118 31.5 23
