High quality product with very small length tolerances produced in Europe. Produced in capacities (WLL) up to 300 tons. Available with different types of protection.
Chemical resistance: Resistant to most acids, but not strong alkalizes.
Certificate: CE-Declaration. DNV/Lloyd's Proofload certificates on demand.
Characteristics:
- High life cycle if correctly used (with proper protections).
- Very flexible, cost saving and easy to handle.
- Excellent technical performance.
- High lifting capacity. (Be aware of big diameters in polyester in combination with shackles/hooks).
- Different sling configurations (on demand).
- Small length tolerances.
- More options for RFID.

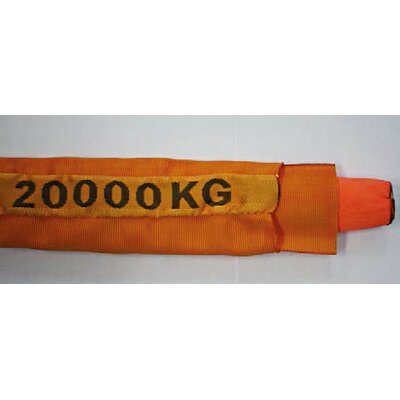

- Extra protection on demand. The use of (extra) appropriate protections is always recommended on the bearing points.
- Different protections for sharp edges, corners, etc. (PES, PU, PVC, HMPE).

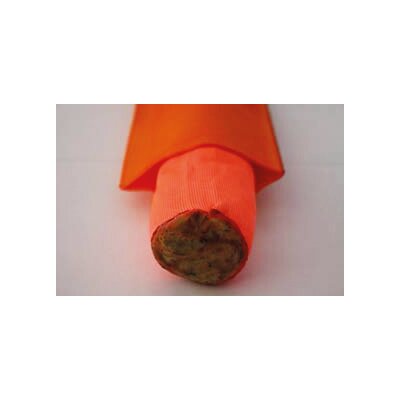

- Material: 100% High Tenacity Polyester core and cover.

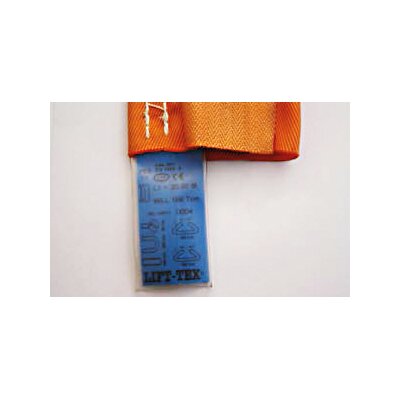

- Marking: According to standard, CE-marked, manufacturer’s symbol, working load limit (WLL), length, and a label with handling instruction.
- Temperature range: -50°C - +70°C
- Standard: EN 1492-2
- Note: Slings should be protected from edges, friction and abrasion, whether from the load or the lifting appliance. Where reinforcements and protection against damage from edges and/or abrasion is supplied as part of the sling, this should be correctly positioned. It may be necessary to supplement this with additional protection.
- Safety factor: 7:1
Select a row from the table below, then click the add to quote button
Lifting table
|
Working load limit (WLL) in tons
|
Colour | ||||
|
|
|
|
|
|
|
|
Straight pull
|
Choke hitch
|
Basket hitch
|
|||
|
|
|
0°
|
0°-45°
|
45°-60°
|
|
|
1
|
0,8
|
2
|
1,4
|
1
|
Violet |
|
2
|
1,6
|
4
|
2,8
|
2
|
Green |
|
3
|
2,4
|
6
|
4,2
|
3
|
Yellow |
|
4
|
3,2
|
8
|
5,6
|
4
|
Gray |
|
5
|
4
|
10
|
7
|
5
|
Red |
|
6
|
4,8
|
12
|
8,4
|
6
|
Brown |
|
8
|
6,4
|
16
|
11,2
|
8
|
Blue |
|
10
|
8
|
20
|
14
|
10
|
Orange |
|
15
|
12
|
30
|
21
|
15
|
Orange |
|
20
|
16
|
40
|
28
|
20
|
Orange |
|
25
|
20
|
50
|
35
|
25
|
Orange |
|
30
|
24
|
60
|
42
|
30
|
Orange |
|
40
|
32
|
80
|
56
|
40
|
Orange |
|
50
|
40
|
100
|
70
|
50
|
Orange |
|
60
|
48
|
120
|
84
|
60
|
Orange |
|
80
|
64
|
160
|
112
|
80
|
Orange |
|
100
|
80
|
200
|
140
|
100
|
Orange |
