General:
Goods WLL: From 500kg up to 5000kg (depending on model)
Personnel WLL: Maximum combined personnel lifting capacity up to 2000kg (depending on model)
3-5 Person fall arrest: EN795:1997 certified – as part of an EN363 compliant system (500 & 1000 - 3 persons, 2000, 3000 & 5000 - 5 persons)
ATEX: All models suitable for use in ATEX Zone 2 explosive atmospheres
Lightweight & portable: With easy on-site assembly within manual handling guidelines:
- 4 portable parts assembled on just 4 bolts
- Simple ‘scissoring’ assembly in just 2-3 minutes
Ergonomic
- 360o swivel-locking castors as standard
- Simple, manual height & span adjustment
- Ultra-safe captive trolley
- Ergonomic design of profiles and handles
Stable: Bolted structure, lateral beam and leg bracing features
Configurations: Variety of standard configurations available, plus customisation for specific requirements and interchangeable components (subject to WLL rating)

      Product Image 1
      Product Image 2
      Currently this product cannot be added to an online quote. Please contact us directly for enquires.
      WLL Rating
      Standard Beam Length
      kg
      mm
      2500
      3000
      3920
      4570
      5500
      6000
      8400
      9000
      Weight of Beams
      kg
      500
      19
      22
      29
      34
      41
      44
      62
      19
      1000
      19
      22
      29
      34
      41
      44
      79
      84
      2000
      19
      22
      29
      34
      52
      93
      130
      x
      3000
      19
      22
      37
      43
      85
      93
      130
      x
      5000
      39
      47
      61
      71
      85
      x
      x
      x

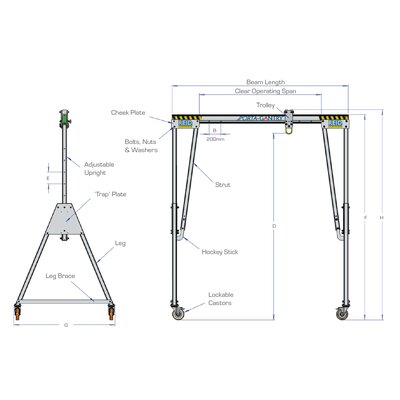

      WLL (kg) - 500/1000
      Frame size
      D max
      E
      D min
      F
      H max
      H min
      G
      Max height to lifting eye
      Height increment
      Min height to lifting eye
      Max height to top of beam
      Max height to top of roller
      Min height to top of roller
      Width
      A-Frame Weight
      Trolley roller size
      Castor Diameter
      S
      2355
      5 x 150
      1605
      2675
      2757
      2007
      1212
      33
      82
      150
      M
      2851
      5 x 150
      2101
      3171
      3253
      2503
      1429
      40
      82
      150
      I
      3188
      5 x 200
      2188
      3499
      3581
      2581
      1726
      46
      82
      200
      T
      4079
      6 x 200
      2879
      4399
      4481
      3281
      2011
      51
      82
      200
      TC4
      4527
      6 x 200
      3327
      4827
      4930
      3730
      2234
      80
      82
      200
      TC3
      5027
      6 x 200
      3827
      5347
      5430
      4230
      2557
      82
      82
      200
      TC2
      5527
      8 x 200
      3927
      5848
      5930
      4330
      2733
      87
      82
      200
      TC1
      5829
      9 x 200
      4029
      6149
      6231
      4431
      2733
      95
      82
      200
      WLL (kg) - 2000
      S
      2355
      5 x 150
      1605
      2675
      2757
      2007
      1212
      33
      82
      150
      M
      2851
      5 x 150
      2101
      3171
      3253
      2503
      1429
      40
      82
      150
      I
      3188
      5 x 2000
      2188
      3499
      3581
      2581
      1726
      46
      82
      200
      T
      4079
      6 x 200
      2879
      4399
      4481
      3281
      2011
      51
      82
      200
      TC4
      4527
      6 x 200
      3327
      4827
      4930
      3730
      2234
      80
      82
      200
      TC3
      5027
      6 x 200
      3827
      5347
      5430
      4230
      2557
      82
      82
      200
      TC2
      5527
      8 x 200
      3927
      5848
      5930
      4330
      2733
      87
      82
      200
      TC1
      5829
      9 x 200
      4029
      6149
      6231
      4431
      2733
      95
      82
      200
