Crosby

Bolt Type Anchor shackles with thin head bolt - nut with cotter pin. Meets the performance requirements of Federal Specification RR-C 271G Type IVA, Grade A, Class 3, except for those provisions required of the contractor.
Proof load: 2 x WLL.

  • Material: Forged – Quenched and Tempered, with alloy bolts
  • Marking: According to standard, CE-marked, WLL, RFID chip for 25T and higher.
  • Temperature range: -40°C up to +204°C
  • Finish: Galvanized with painted bolt.
  • Standard: EN 13889
  • Safety factor: 6:1
  • Grade: 6

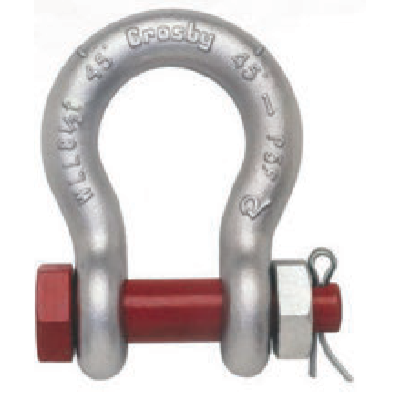

Bolt Type Anchor Shackle Crosby G-2130

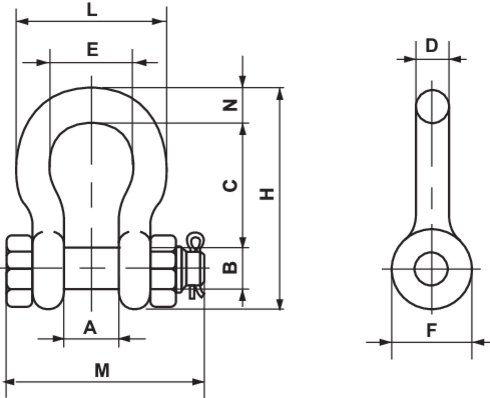

Bolt Type Anchor Shackle Crosby G-2130 measurements
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Nominal size
In.
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
H
mm
L
mm
M
mm
N
mm
C Tolerance +/- A Tolerance +/- Weight
kg
CAD
05A0005 0,33 3/16 9,65 6,35 22,4 4,85 15,2 14,2 37,3 24,9 32,8 4,85 1,50 1,50 0,03 -
05A0010 0,5 1/4 11,9 7,85 28,7 6,35 19,8 15,5 46,7 32,5 39,6 6,35 1,50 1,50 0,05 -
05A0020 0,75 5/16 13,5 9,65 31,0 7,85 21,3 19,1 53 37,3 46,2 7,85 1,50 1,50 0,1 -
05A0040 1 3/8 16,8 11,2 36,6 9,65 26,2 23,1 63,0 45,2 55,1 9,65 3,30 1,50 0,15 -
05A0030 1,5 7/16 19,1 12,7 42,9 11,2 29,5 26,9 74,0 51,5 63,8 11,2 3,30 1,50 0,22 -
05A0050 2 1/2 20,6 16,0 47,8 12,7 33,3 30,2 83,5 58,5 71,1 12,7 3,30 1,50 0,36 -
05A0060 3,25 5/8 26,9 19,1 60,5 16,0 42,9 38,1 106 74,5 90,4 17,5 3,30 1,50 0,62 -
05A0070 4,75 3/4 31,8 22,4 71,5 19,1 51,0 46,0 126 89,0 105 20,6 6,35 1,50 1,23 -
05A0080 6,5 7/8 36,6 25,4 84,0 22,4 58,0 53,0 148 102 122 24,6 6,35 1,50 1,79 -
05A0090 8,5 1 42,9 28,7 95,5 25,4 68,5 60,5 167 119 137 26,9 6,35 1,50 2,28 -
05A0100 9,5 1-1/8 46,0 31,8 108 28,7 74,0 68,5 190 131 150 31,8 6,35 1,50 3,75 -
05A0110 12 1-1/4 51,5 35,1 119 31,8 82,5 76,0 210 146 170 35,1 6,35 1,50 5,31 -
05A0120 13,5 1-3/8 57,0 38,1 133 35,1 92,0 84,0 233 162 183 38,1 6,35 3,30 7,18 -
05A0130 17 1-1/2 60,5 41,4 146 38,1 98,5 92,0 254 175 196 41,1 6,35 3,30 8,62
05A0140 25 1-3/4 73,0 51,0 178 44,5 127 106 313 225 246 57 6,35 3,30 15,4
05A0150 35 2 82,5 57,0 197 51,0 146 122 348 253 275 61 6,35 3,30 23,7
05A0160 55 2-1/2 105 70,0 267 66,5 184 145 453 327 345 79,5 6,35 6,35 44,6 -
05A0170 85 3 127 82,5 330 76,0 200 165 546 365 384 92 6,35 6,35 70 -
