Crosby

General:
- Forged Steel — Quenched and Tempered.
- Excellent welding qualities.
- Widely used on farm machinery, trucks, steel hulled marine vessels and material handling equipment.
- Reference American Welding Society specifi cations for proper welding procedures.

Product Image 1
Product Image 2
Select a row from the table below, then click the add to quote button

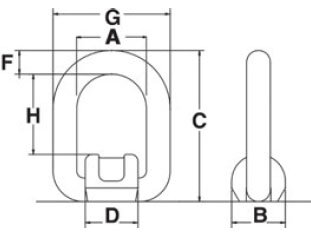

Art No Working load limit design factor 5:1 Working load limit design factor 4:1 minimum fillet weld size (mm) A (mm) B (mm) C (mm) D (mm) F (mm) G (mm) H (mm) Weight
kg
CAD
1290740 1 1.2 3 40 36 83 35 13 66 42 0.4
1290768 2.5 3.2 3 45 44 99 42 18 81 48 0.6
1290786 4.2 5.3 6 55 50 123 49 22 99 57 1.2
1290802 6.4 8 6 70 64 144 64 26 122 67 2.4
1290820 12 15 8 97 90 193 86 34 165 94 5.9

Download CAD
