Walmag

General: Suitable for both flat and round material. To be used together with the NEO HV lifting arm, which transforms your standard NEOLIFT or NEO HOT magnet into a handling device.

  • Material: Robust construction
  • Marking: According to standard
  • Temperature range: -40ºC up to +80°C.
  • Finish: Painted.
  • Standard: EN 13155
  • Safety factor: Minimum 3:1.
Product Picture 2
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
Ø of eye mm WLL round materials
t

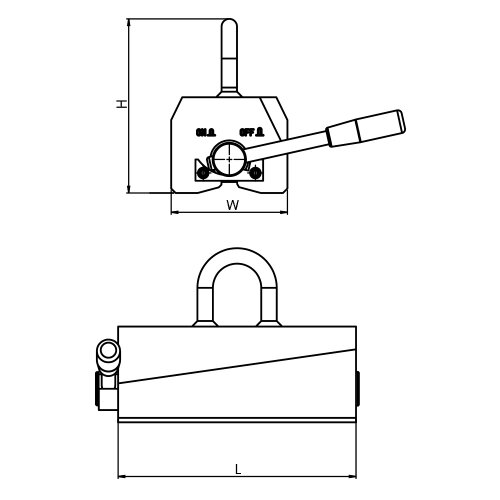

Ø min./max. (mm) W
mm
L
mm
H
mm
Weight
kg
-- NEO 250 0.05 16 0,15 60/200 100 152 180 10
-- NEO 500 0.5 16 0,3 65/270 120 246 180 21
-- NEO 1000 1 20 0,5 100/300 146 306 236 40
