General: POWERTEX permanent lifting magnets are versatile, easy to use and have a good safety margin. The magnets need limited maintenance
and keep their magnetic power for a long lifetime.
POWERTEX lifting magnets are very powerful compared to their dimensions and low own weight.
- Lifts both plain and round material
- Lifts both vertical and horizontal
- Releasing of the load by two action handle for greater safety.

  • Standard: EN 13157
Product Image 1
Product Image 2
Select a row from the table below, then click the add to quote button

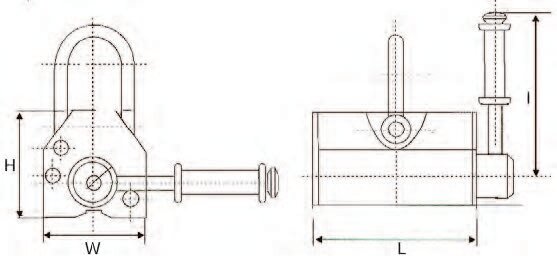

Art No Type rated lifting strength (KGF) cylindrical lifting strength (KGF) max pull-off strength (KGF) operation temperature (C) Dead weight (kg) W (mm) L (mm) H (mm) I (mm) CAD
16.45PLM001 PLM-1 100 30 400 <80 3 80 105 82 140
16.45PLM003 PLM-3 300 100 1.2 <80 10 92 162 91 155
16.45PLM006 PLM-6 600 200 2.4 <80 24 122 232 117 196
16.45PLM010 PLM-10 1 300 4 <80 50 176 258 163 285
16.45PLM020 PLM-20 2 600 8 <80 125 234 378 212 426
16.45PLM030 PLM-30 3 1 12 <80 220 286 458 261 521
16.45PLM060 PLM-60 6 2 24 <80 460 296 838 266 830
