Crosby

General: The IPBKZ beam clamp is used for lifting, transfer and stacking of I-Beams. An over-center hoist eye allows for the
beam flange to remain vertical. This series of clamps can be used in the vertical and horizontal moving, transfer and stacking
of different types of structural designs, such as I-Beams, angles, etc, depending on the application desired.
Available in capacities of .75 thru 3.75 metric tons. Wide variety of jaw openings available: 0 to 28mm
Optional IP-5000 Stinger assembly available (see page 382). Allows for easy connection between the clamp and hoist hook.
Proof load: 2 x WLL

  • Marking: Logo, WLL, jaw capacity, serial number, proof load test date and CE-marking.
  • Finish: Orange/blue painted.
  • Safety factor: Gemäß EN 13155
IPBKZ

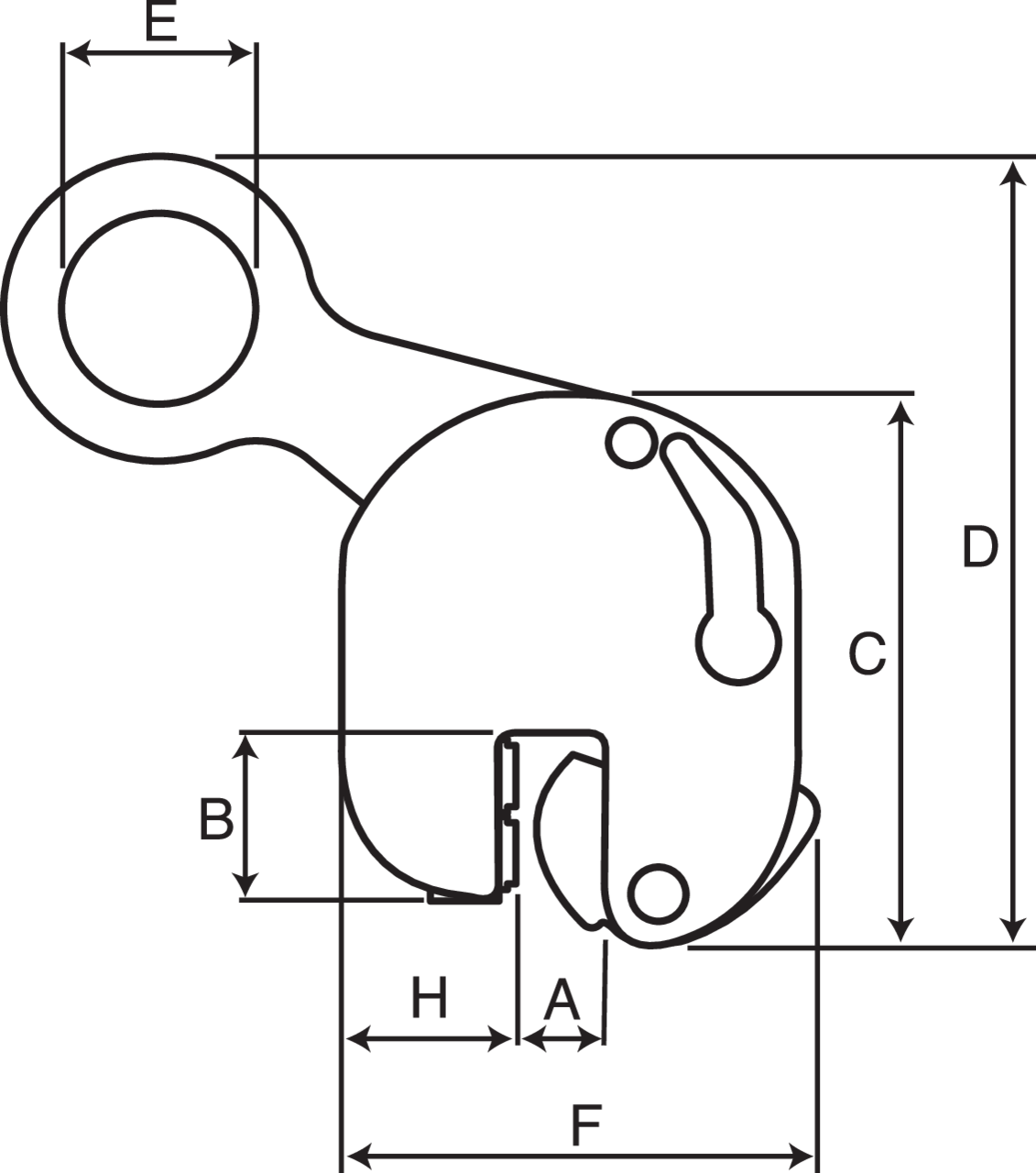

IPBKZ tek E
Select a row from the table below, then click the add to quote button
Code WLL
Ton
Jaw A B (mm) C (mm) D (mm) E (mm) F (mm) H (mm) Weight
kg
IPBKZ 0.75 5 - 15 43 132 192 45 113 38 3.5
IPBKZ 1.5 5 - 25 62 210 300 70 163 50 7
IPBKZ 3.75 5 - 28 75 260 415 100 202 52 15.5
