Crosby

Design: Jaw and eye swivel with tapered roller thrust bearing. Suitable for frequent rotation under load.

  • Marking: WLL.
  • Note: Crosby swivels should only be used with the recommended wire rope.
  • Warning: NOT TO BE USED ON DEMOLITION (WRECKING) BALLS.
  • Safety factor: 5:1
Crosby S3_J&E

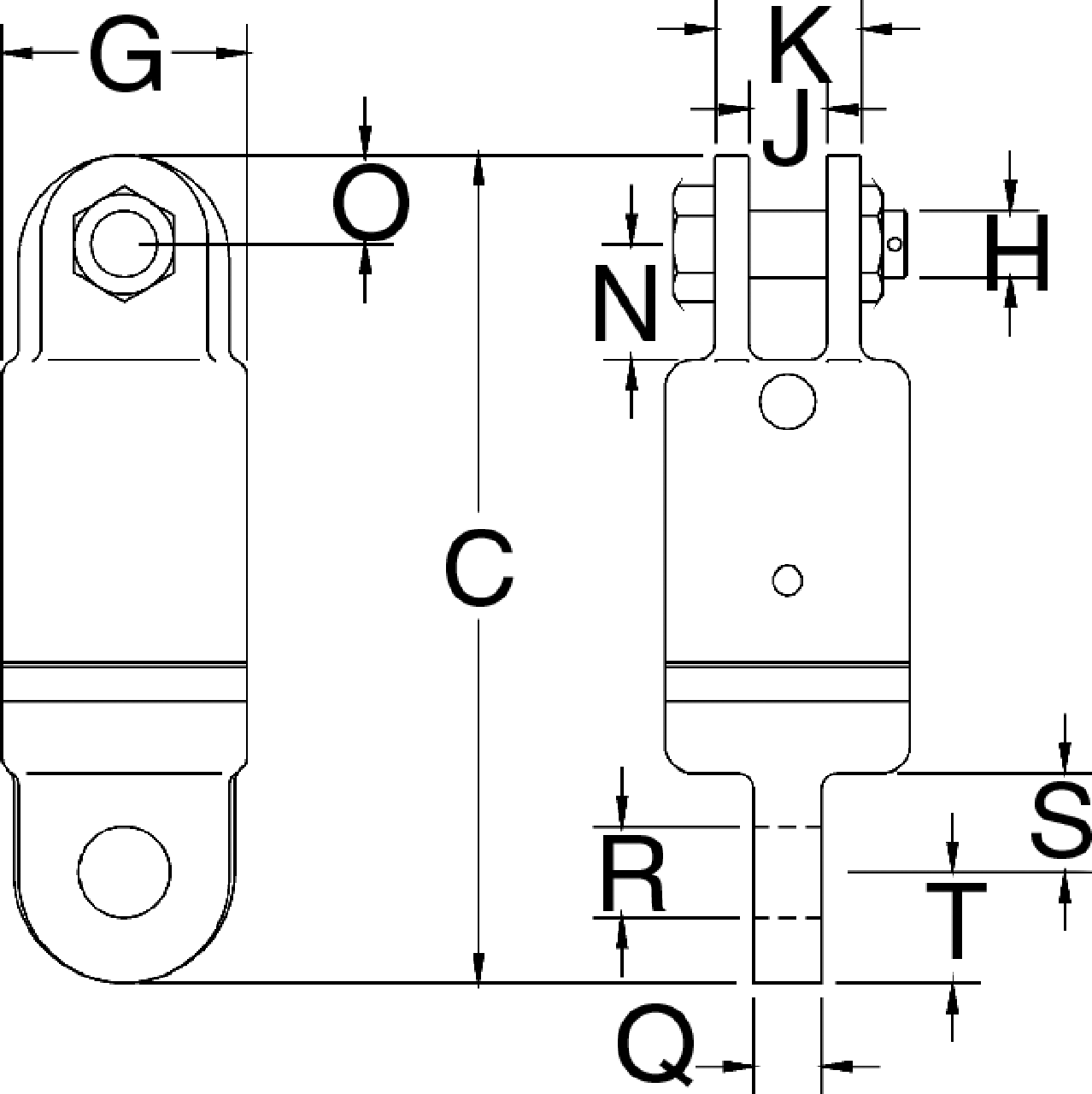

S3_J&Edwg
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Rope Ø
mm
Swivel No C
mm
G
mm
H
mm
J
mm
K
mm
N
mm
O
mm
Q
mm
R
mm
S
mm
T
mm
Weight
kg
-- 3 13 3-S-3 237 70,0 19,1 22,4 41,1 33,3 25,4 19,1 26,2 28,4 31,8 4.14
-- 5 16 5-S-3 256 76,0 22,4 25,4 57,0 41,1 28,4 25,4 32,5 31,8 31,8 6.12
-- 8.5 19 8-S-3 311 102 25,4 39,5 71,5 54,0 35,1 31,8 35,8 41,1 38,1 11.3
-- 10 22 10-S-3 409 114 38,1 44,5 86,1 89,0 44,5 42,9 42,9 70,0 47,8 19.7
-- 15 26 15-S-3 425 127 38,1 44,5 86,0 89,0 44,5 49,3 51,5 70,0 54,0 27.7
-- 25 25-S-3 546 152 51,0 51,0 117 93,5 60,5 57,0 58,5 98,5 60,5 61
-- 35 35-S-3 546 165 51,0 51,0 117 93,5 60,5 57,0 58,5 98,5 60,5 68
-- 45 45-S-3 657 178 57,0 63,5 127 102 76,0 63,5 64,5 102 76,0 102

*Individually Proof Tested to 2 times the Working Load Limit. Ultimate Load is 5 times the Working Load Limit.
