Crosby

Design: Eye and hook swivel with tapered roller thrust bearing. Suitable for frequent rotation under load.

Proof load: 2 x WLL.

  • Marking: WLL.
  • Finish: Painted.
  • Note: Crosby swivels should only be used with the recommended wire rope.
  • Safety factor: 5:1.
S-6 Eye & Hook
Select a row from the table below, then click the add to quote button
Art No Diameter
mm
WLL
Ton

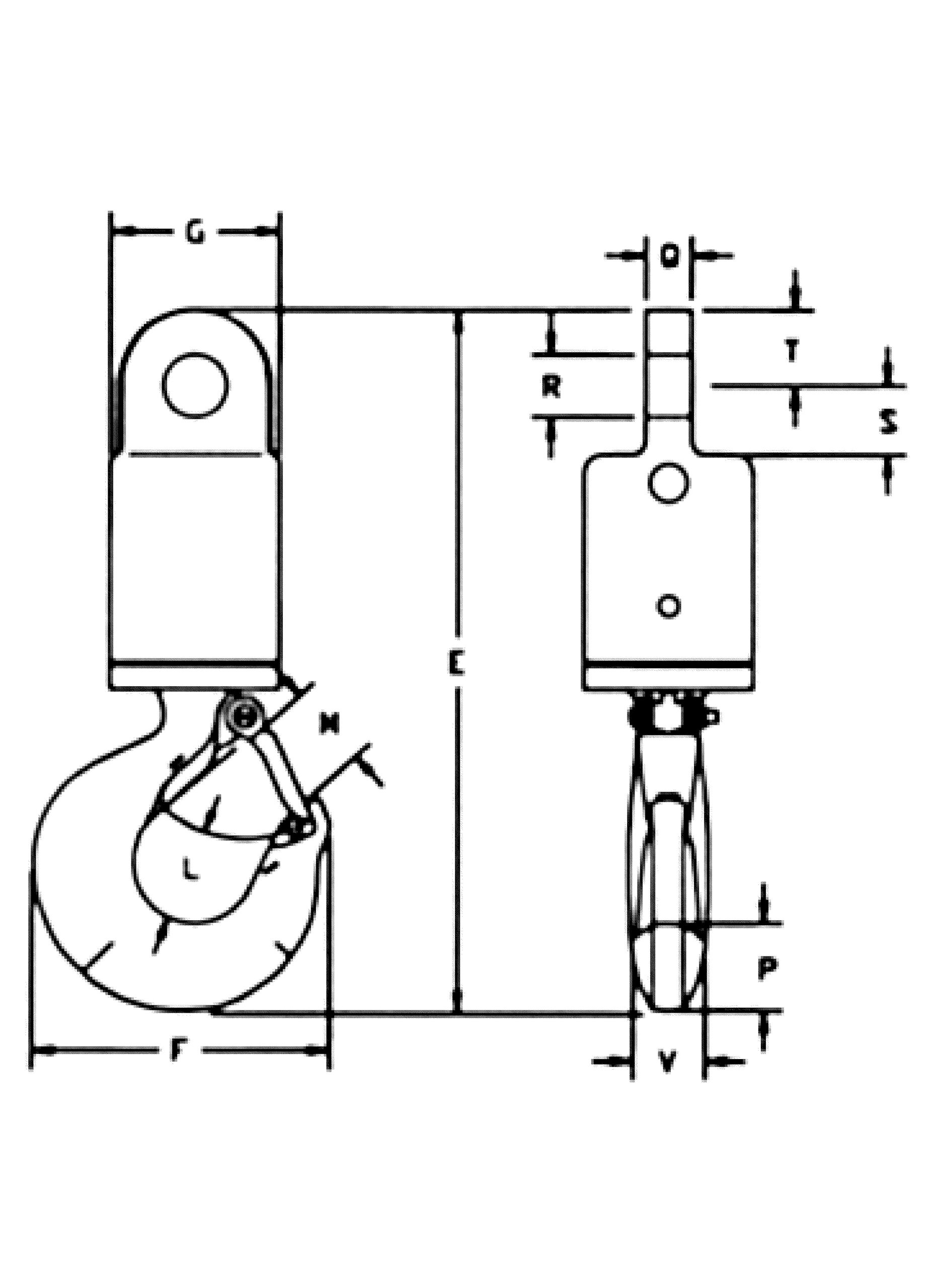

Swivel No E (mm) F (mm) G (mm) L (mm) M (mm) P (mm) Q (mm) R (mm) S (mm) T (mm) V (mm) Weight
kg
CAD
11.46297066 13 3 3-S-6 292 123 70,0 38,9 35,8 36,6 19,1 26,2 28,4 31,8 28,4 4.23
11.46297262 16 5 5-S-6 332 160 76,0 49,3 42,9 46,0 25,4 32,5 31,8 31,8 36,6 6.46
11.46297468 19 8.5 8-S-6 408 192 102 62,5 56,5 57,0 31,8 35,8 41,1 38,1 41,1 14.5
11.46297663 22 10 10-S-6 486 212 114 66,0 61,0 66,0 42,9 42,9 70,0 47,8 49,3 20.6
11.46297869 26 15 15-S-6 540 263 127 71,5 61,0 76,0 49,3 51,5 70,0 54,0 60,5 28.6
11.46298163 25 25-S-6 699 346 152 87,5 92,0 93,0 57,0 58,5 98,5 60,5 76,0 61
11.46298261 35 35-S-6 780 357 165 98,5 95,5 116 57,0 58,5 98,5 60,5 81,0 98
11.46298369 45 45-S-6 907 392 178 121 108 129 63,5 64,5 102 76,0 82,5 122
