Crosby

Design: Eye & eye swivel with tapered roller thrust bearing. Suitable for frequent rotation under load.

Proof load: 2 x WLL.

  • Marking: WLL.
  • Finish: Painted.
  • Note: Crosby swivels should only be used with the recommended wire rope.
  • Safety factor: 5:1.
Crosby S5_EE
Select a row from the table below, then click the add to quote button
Art No Code WLL
Ton

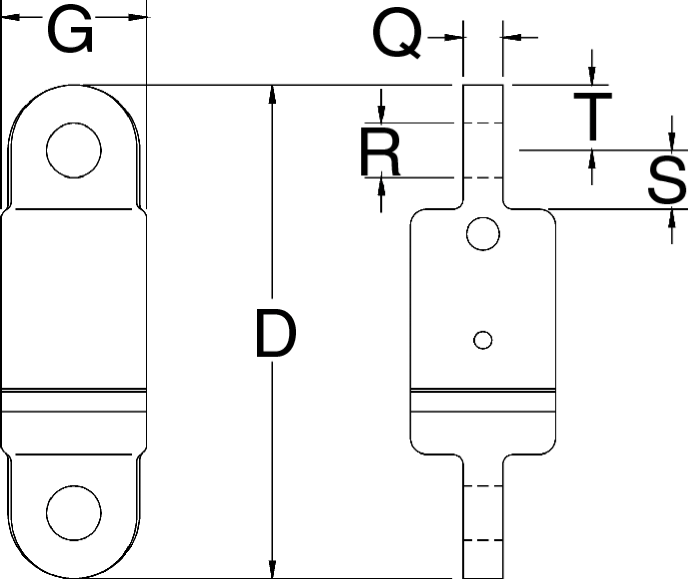

Rope Ø (mm) Swivel No D (mm) G (mm) Q (mm) R (mm) S (mm) T (mm) Weight
kg
11.46297057 S-5 E/E 3T 3 13 3-S-5 239 70 19.1 26.2 28.4 31.8 3.86
11.46297253 S-5 E/E 5T 5 16 5-S-5 249 76 25.4 32.5 31.8 31.8 5.13
11.46297459 S-5 E/E 8.5T 8.5 19 8-S-5 302 102 31.8 35.8 41.1 38.1 13.3
11.46297654 S-5 E/E 10T 10 22 10-S-5 394 114 42.9 42.9 70 47.8 19.1
11.46297850 S-5 E/E 15T 15 26 15-S-5 416 127 49.3 51.5 70 54 22.2
11.46298154 S-5 E/E 25T 25 - 25-S-5 565 152 57 58.5 98.5 60.5 59
11.46298252 S-5 E/E 35T 35 - 35-S-5 565 165 57 58.5 98.5 60.5 66
11.46298350 S-5 E/E 45T 45 - 45-S-5 673 178 63.5 64.5 102 76 98
