Crosby

Design: Eye and jaw swivel with tapered roller thrust bearing. Suitable for frequent rotation under load.

Proof load: 2 x WLL

  • Marking: WLL
  • Finish: Painted
  • Note: Crosby swivels should only be used with the recommended wire rope.
  • Safety factor: 5:1
Crosby S4_E&J

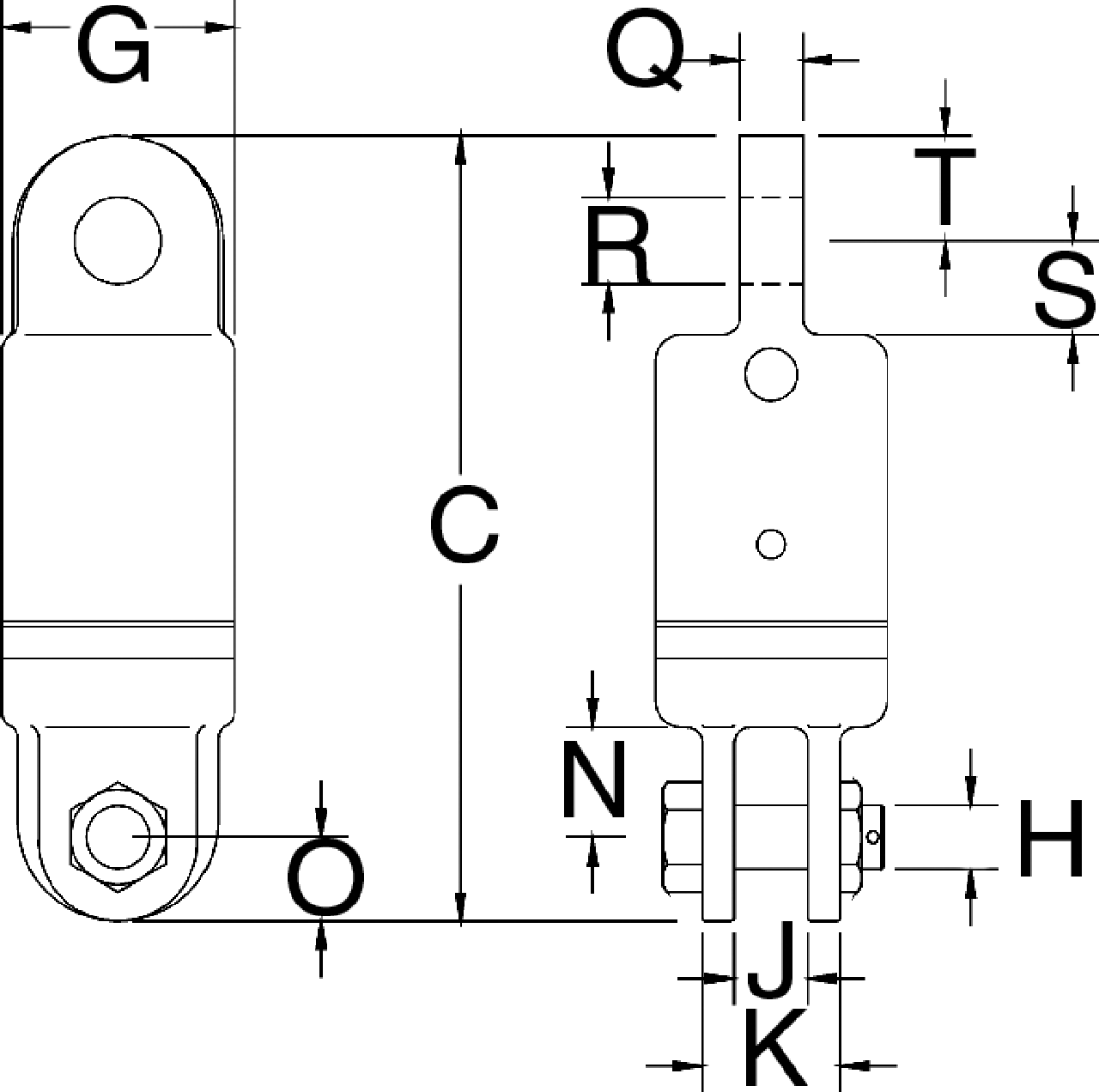

S4_E&Jdwg
Select a row from the table below, then click the add to quote button
Art No WLL
Ton
Rope Ø (mm) Swivel No C (mm) G (mm) H (mm) J (mm) K (mm) N (mm) O (mm) Q (mm) R (mm) S (mm) T (mm) Weight
kg
11.46297048 3 13 3-S-4 237 70,0 19,1 22,4 41,1 33,3 25,4 19,1 26,2 28,4 31,8 4.08
11.46297244 5 16 5-S-4 256 76,0 22,4 25,4 57,0 41,1 28,4 25,4 32,5 31,8 31,8 5.6
11.46297440 8.5 19 8-S-4 311 102 25,4 39,5 71,5 54,0 35,1 31,8 35,8 41,1 38,1 13.2
11.46297645 10 22 10-S-4 409 114 38,1 44,5 86,0 89,0 44,5 42,9 42,9 70,0 47,8 20
11.46297841 15 26 15-S-4 425 127 38,1 44,5 86,0 89,0 44,5 49,3 51,5 70,0 54,0 27.7
11.46298145 25 25-S-4 546 152 51,0 51,0 117 93,5 60,5 57,0 58,5 98,5 60,5 61
11.46298243 35 35-S-4 546 165 51,0 51,0 117 93,5 60,5 57,0 58,5 98,5 60,5 68
11.46298341 45 45-S-4 657 178 57,0 63,5 127 102 76,0 63,5 64,5 102 76,0 102
