General: DYNAFOR™ LLZ2 devices offer the best possible quality / price ratio among electronic load indicators. They are used to measure tensile forces (N) and to determine hanging loads (kg).
Maximum display kg: 110% of the WLL.

Sensor material: Aluminium.
Autonomy: 350 hours.
Battery type/life: 2 × 1.5V "AAA" batteries/350 hours;
Packaging: Delivered in plastic suitcase.
Protection: IP 65.

  • Temperature range: -20°C up to +50°C.
  • Safety factor: 4:1.
Dynafor LLZ
Select a row from the table below, then click the add to quote button

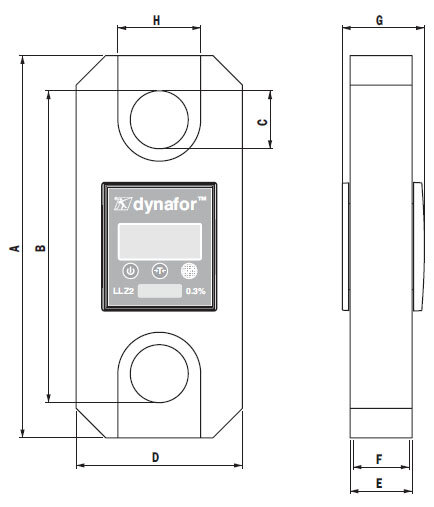

Art No WLL Ton A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) Model Test load tons Increment kg Resolution 0.3% FS** ± kg Weight kg
16.50260889 1 191 164 22 83,5 22 19.8 36.4 37.6 LLZ2 1t 1.5 1 3 0.75
16.50260899 3.2 191 164 22 99.5 22 19,8 36.4 44.8 LLZ2 3.2t 4.8 5 9.6 0.93
16.50260909 6.3 236 184 28 121.5 22 19,8 36.4 54.7 LLZ2 6.3t 9.6 10 18.9 1.44
16.50260919 12.5 277 226 42 120.5 45 40,5 59.4 60,0 LLZ2 12.5t 18.75 20 37.5 3.22
16.50260929 20 342 264 54 147 45 40,5 59.4 73.5 LLZ2 20t 30 50 60 4.95
