Red Rooster

General: The RED ROOSTER Mini Air Chain Hoists are besides industrial
use also very suitable for "Material Handling".
Due to the low weight these hoists are very suitable for service applications. Special for use in tank cleaning installations we recommend stainless steel chain.

Features:

  • Low weight and therefor very mobile, easy mounting
  • TCR-125 - TCR-250 only 7 kg, 3 meter lift included
  • TCR-500/2 only 9 kg, 3 meter lift included
  • Precise varaiable speed control (cord - and pendant control)
  • Very compact design
  • Robust aluminum housing
  • Air motor is cooled by the exhaust air (internal)
  • Cord control or pendant control
  • Low noise level

Optional:

  • Marine Specification/Corrosion resistant
  • Paint systems from C2 - Industrial to C5 - Offshore specification (Red finish as standard. Other RAL colours available on request).
  • Choice of pendants.
  • Radio control pendant for electro pneumatic controls.
  • Control systems.
  • Chain collectors (PVC, galvanised or stainless steel).
  • Various types of hook or clevis available.
  • Air supply systems and valves.
  • Air Service unit.
  • Piped away exhaust air.
  • In house design for "specials".
  • Festoon systems.
  • Main air shut off valve.

ATEX:

  • According to EC Directive 94/9/EC (Ex Classification)

Recommended:
We highly recommend the use of an SMC air treatment unit. (Sold separately.)

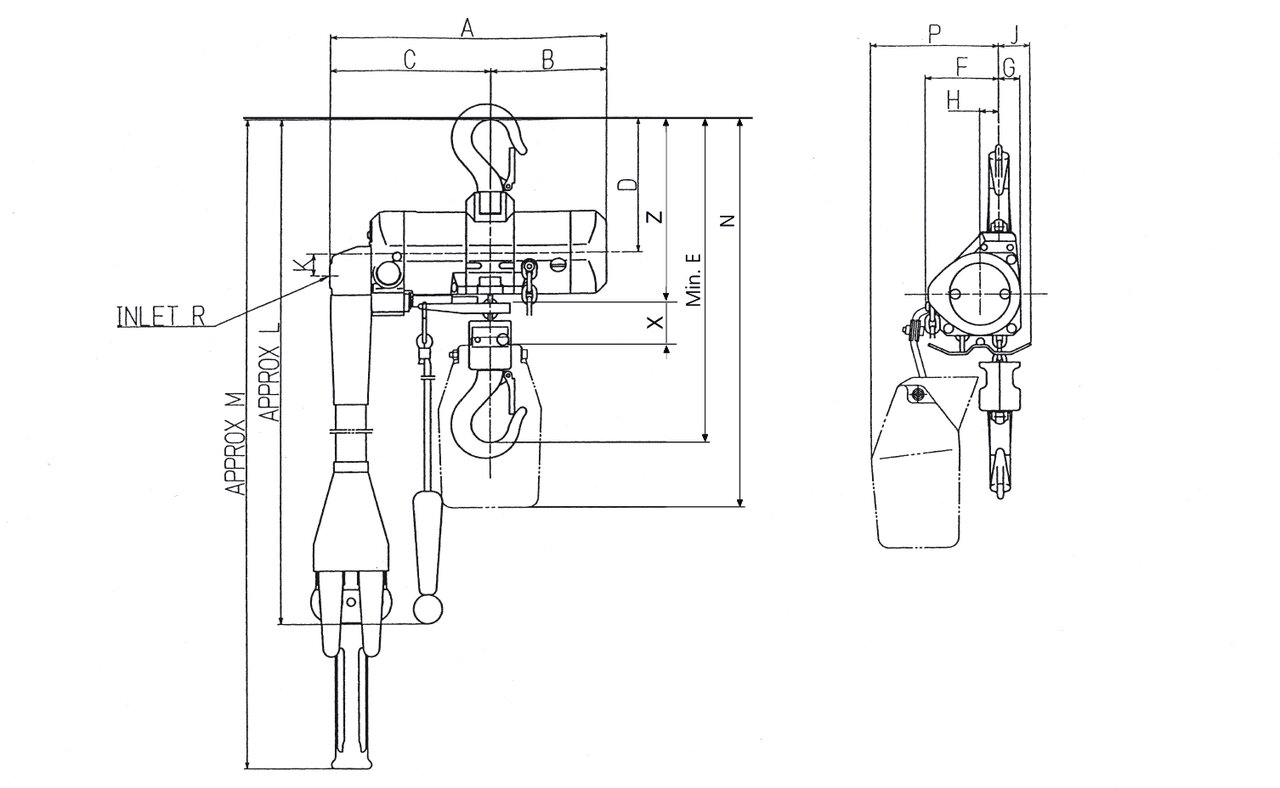

Product Image 1
Product Image 1
Product Image 2
Select a row from the table below, then click the add to quote button
Part Code WLL Type Chain falls Lifting speed without load (m/min) Air consumption lifting (l/sec) Lifting speed with load (m/min) Lowering speed with load m/min Air consumption lowering (I/sec) Weight with 3m HOL
-- 0.125 TCR-125C 1 19 11.7 14 16 15 7
-- 0.125 TCR-125DPE 1 17.2 11.7 12.8 13 15 8.6
-- 0.25 TCR-250C 1 19 11.7 9.3 17 15 7
-- 0.25 TCR-250DPE 1 17.2 11.7 8.1 13 15 7
-- 0.5 TCR-500C2 2 9.5 11.7 4.6 9 15 9
-- 0.5 TCR-500DP2 2 9.5 11.7 4.6 9 15 9
