What is a Steel Wire Rope?

A steel wire rope is made up of individual steel wires spun into a strand. A number of strands are closed over a central core thus producing a rope. The number and size of wires must offer the best compromise possible between large wires for maximum corrosion protection and resistance to abrasion, and smaller wires for the necessary flexibility and handling.

The construction of a steel wire rope is expressed according to following:

e.g 6x36-FC

     6
is the number of strands in the steel wire rope
     36 is the number of wires in the strand
     FC is the type of the core

The Wire

The basic material is wire rod, which is cold-drawn into wire of different diameters and strength grades.
The most common grades are:

Rope grade

Wire tensile strength grades



Hardness app.

EN
API 9A
Min

Max

Brinel
Rockwell


kp/mm²
N/mm²
kp/mm²
N/mm²
HB
HRC
1570
PS
140
1370
180
1770
405/425
45
1770
IPS
160
1570
200
1960
445/470
49
1960
EIPS (XIP)
180
1770
220
2160
470/480
51
2160
EEIPS (XXIP)
200
1960
220
2160
480/500
52

Finish
The wire is either untreated (bright), galvanised or stainless. Galvanised wire gives the rope greater protection for corrosive environments. For extreme cases a stainless rope is used. Steel wire ropes can also be provided with plastic impregnation.

The Strand

The strand is built up by individual wires which are laid around the core in one or more layers, typically to one of the following constructions:

Ordinary:
Ordinary lay wires - all wires are in the same size.

Seale (S):
Parallel lay wires - different size, same number of wires in outer and inner layer.

Warrington (W):
Parallel lay wires - the outer layer of wires has two different sizes, twice as many outer wires as inner wires.

Warrington-Seale (WS):
Parallel lay wires - a combination between Seale and Warrington, with three or more layers of wire.

Filler wire (F):
Parallel lay wires - twice as many outer wires as inner wires, with small wires to fill the spaces between the large wires.

Compacted strand:
A strand that has been formed through compaction maintaining the steel area whilst increasing the fill factor.

Strand Lay

In a strand construction with several layers of wire where all the wires are in the same dimension the different layers cross eachother (cross lay). In an strand construction with unequal wire dimension the layers of wires lays parallel to eachother (parallel lay).

In parallel laid strands the steel area increases compared to cross layed strands. Another advantage with parallel laid strands are the improved fatigue- and wear resistance as a result from the same wire lay length and stand angle.



Parallel Laid:

The Core

The strands in a rope are laid around a core of either fibre, steel or solid plastic.

Where the strands are laid over a fibre core  FC is used, e.g. 6x19-FC.

Ropes with steel cores should be chosen if the rope is exposed to high working temperature, hard strains, high work rate, hard pressures on drums and blocks etc. The steel core gives better support for the strands, which result in the rope retaining its shape better and giving a better distribution of the stresses in the individual wires.

If the steel core of the rope consists of a single strand the term -WSC is used, e.g. 6x19-WSC.

If the steel core of the rope consists of a steel wire rope the term -IWRC is used, e.g. 6x19-IWRC.

Some steel wire ropes can have a plastic encapsulated core which provides increased stability to the rope and also reduces the wear and corrosion in and around the core, e.g. Dyform 8 PI.

Rope Lay

Ordinary hand lay
The direction of the lay of the outer layer of wires in the strands is opposite to the direction of lay of the strands in the rope. Ordinary lay is more resistant to kinking and untwisting, and less likely to fail as a result of crushing and distortion.

Lang's lay
The direction of lay of the outer layer of wires in the strands are in the same  direction of lay of the strands in the rope. The advantage of using Lang's lay is that the rope offers a better wearing surface when in use, and therefore can be expected, in many cases to last longer. Lang's lay ropes produce relatively high torque values under working conditions and must not be used on applications where one end of the rope is free to rotate or where problems from rope turn are likely to occur.

Right hand lay
The strands are twisted to the right around the core. Right hand lay is the most common lay direction in a rope.

Left hand lay
The strands are twisted to the left around the core.

Lay Length

Lay length is an expression for the length on a "wire- or strandhelix". Lay length is carefully decided for each wire rope construction and has to be retained, otherwise the life length of the wire rope is considerably reduced.

Rotation Resistance

To achive as little rotation tendency as possible with high lifting heights "rotation resistent" ropes should be used.

Rotation resistant ropes are made out of many layers of strands. Every layer are laid in opposite direction to the next layer, so that the torque in the different layers outmatch each other.

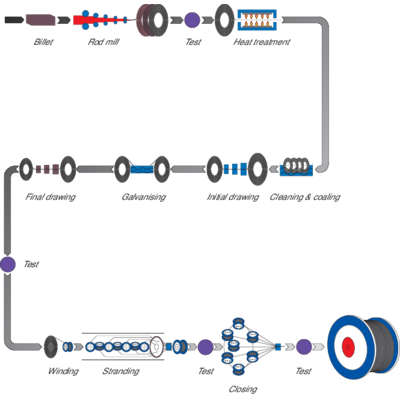

From Rod to Rope

Preforming

Preforming is a type of process assuring that each strand of the rope is preformed to the helical shape it will assume in the finished rope. Advantages of preforming:

– The ropes are free from liveliness and twisting tendencies which makes installation and handling easier.
– The ropes can be cut without seizings and exposed ends will not untwist.

Preforming takes place in a preformhead where the strand pass immediately berfore the closing. Preformed wire ropes has a lot of names, e.g. preformed, trulay.

Wire Rope Diameter

The rope diameter should always be checked before installation. Measure a straight part of the rope. Two parts with minimum distance of one meter should be measured. At every point two measurements should be done, with an angle of 90 degrees displacement in relation to each other. The average between the two measurements should be according to the tolerance detailed in the tables below.

Steel wire ropes for general applications

Nominal
rope Ø

Tolerance of nominal diameter
on unloaded rope

mm
%
2 to <4
0 +8
4 to <6
0 +7
6 to <8
0 +6
=8
0 +5

Nominal
rope Ø

The difference between two measurements expressed as the percent from nominal diameter for unloaded rope




Rope with strands that are exclusively of wire

Ropes with strands that incorporate fibre centres
mm
max %
max %
2 to <4
+7
-
4 to <6
+6
+8
6 to <8
+5
+7
=8
+4
+6

Steel wire ropes for person elevators

Nominal
rope Ø

Tolerance for nominal diameter for ropes with fibre core/synthetic core




Tolerance for nominal diameter for ropes with steel core




Unloaded
Loaded to 5% of min breaking load
Loaded to 10% of min breaking load
Unloaded
Loaded to 5% of min breaking load

Loaded to 10% of min breaking load

mm
max %
min %
min %
max %
min %
max %
=10
+6
+1
0
+3
0
-1
>10
+5
+1
0
+2
0
-1
Nominal
rope Ø
Difference between two measurements expressed as percentage of nominal diameter under a load equivalent to 5% or 10% of min breaking load


Rope ovality
Average diameter variation
mm
max %
max %
<8
+4
+3
=8
+3
+2

Properties of Extension of Steel Wire Ropes

Any assembly of wires spun into a helical formation (either as a strand or a wire rope), when subjected to a tensile load, can extend in three seperate phases, depending on the magnitude of the applied load:

    Phase 1: initial extension
    Phase 2: elastic extension
    Phase 3: permanent extension (thermal elongation and contraction, rotation, wear and corrosion)

Phase 1 and 2 are highly important because they represent a part of the qualities of the rope. Phase 3, on the other hand, can be caused by wrong choose of rope or lack of rope inspection. The phases are connected to eachother and cause a course of event in all ropes that are exposed to gradual increased load. Due to this a new rope, which are exposed to overloading, will go through phase 1 and 2 before the third phase (permanent extension) begin.

Phase 1: Initial or permanent extension
This phase of extension of the rope depend on the construction of the rope and can be explained as following:

When loading a new product, extension is created by the bedding down of the assembled wires with a corresponding reduction in overall diameter. This reduction in diameter creates an excess length of wire which is accommodated by a lengthening of the helical lay.

When sufficientely large bearing areas have been generated on adjacent wires, to withstand the circumferential compressive loads, this mechanically created extension ceases and the extension in phase 2 commences.

The initial extention can not be accurately determined and depend on, apart from the strand or the rope construction, the various load and the current load frequency.

It is not possible to quote any exact values for various constructions but the following approximate values can be used to give reasonably accurate results.

Load
Safety factor
Extension in % of the total length of the rope



Rope with fibre core
Rope with steel core
Lightly loaded
8
0,25
0,125
Normally loaded
5
0,5
0,25
Heavily loaded
3
0,75
0,5
Heavily loaded with many "bends"
2
Up to 2
Up to 1

Phase 2: Elastic extension (elongation)
Following Phase 1, the rope extends in a manner which complies approximately with Hookes Law, i.e. stress is proportional to strain.

The proportionality factor normally is a material constant called Modulus of Elasticity (E-module). To steel wire ropes the E-module is more of a construction constant than a material constant.

The elastic extension can be calculated as followed (Hookes law):

Elastic extension (mm) = (W x L) / (E x A)

W = applied load (kg)
L = rope length (mm)
E = elastic modulus (kg/mm2)
A = area of rope - circumscribed circle (mm2)

The modulus of elasticity varies with different rope constructions. According to manufacturing factors, wire dimensions and a lot of other factors the E-module various between different wire ropes of the same construction and dimension. If exact E-module olf a certain rope is necassary a modulus test have to be done at that rope.

The elastic extension is valid until the proportionality or elasticity limit is reached. By load exceeding this limit extension according to phase 3 take place. Elasticity limit are defined as the largest strain where the rope return to its original length when unloaded.

General E-module of the rope construction

Type of steel wire rope
E-module

kp/mm²
Spiral strand, type 1x7
12600
Spiral strand, type DYFORM 1x7
14000
Spiral strand, type 1x19
10900
Spiral strand, type DYFORM 1x19
13600
6-part single constructions with fibre core, e.g. 6x7-FC
6300
6-part single constructions with steel core, e.g. 6x7-WRC
7000
6-part assemblies with fibre core, e.g. 6x36-FC
5000
6-part assemblies with steel core, e.g. 6x36-IWRC
6000
Compacted constructions with steel core, e.g. DYFORM 6
6400
Compacted constructions with steel core, e.g. DSC- DYFORM
7900
Multi strand, rotation resistant constructions, e.g. 18x7
4200
Multi strand, rotating resistant constructions, e.g. 35x7
6900
Multi strand, rotating resistant compacted constructions, e.g. 34x7-KWSC
7200
Elevator rope TRULIFT 8F (8x19S-FC)
4000
Elevator rope TRULIFT 8SPC (8x19S-SPC)
4300
Elevator rope TRULIFT 8S (8x19S-IWRC)/TRULIFT 9S (9x19S-IWRC)
6000

These values are current for ropes operating with safetyfactor 5:1. By lower safety factors the module of elasticity indicated are raised and by higher safety factors they sink.


Phase 3: Permanent extension
Load that cause tension in the steel wire rope, which exceeding the yield point of the material, the linear relation, due to phase 2, between stress and strain. This mean a small increase of load cause a lager extension than it would be in the elastic elongation area. If the load continues to increase the extension will increase faster than the load. This relation accelerate until a condition of permanent extension is reached and finally of the rope without further loading.

Thermal expansion and contraction
This type of extension or contraction depend on the coefficient of linear expansion of the rope.

The coefficient is linear depending on the teperature variation of the material and has the value: 0,0000125/˚C.

The formula for length extension is following: Extension in m = 0,0000125 x L x t.

L = length of rope (m)
t = temperature change (˚C)

Extension due to rotation
The elongation can be caused by a free rope end being allowed to rotate when loaded, e. g. "free" load or montage of swivel. The lay will be extended and cause an elongation.

Extension due to wear
The elongation due to inter-wire wear reduces the cross-sectional area of steel and producesextra constructional extension.

Exampel:
The total elongation of a 200 m length of steel wire rope type 28 mm 265-wires (6x36-IWRC) at a tension of 10 tons (safety factor 5:1) and with an increase in temperature of 20°C.

According to phase 1:
Permanent constructional extension = 0,25% x total rope length = 0,25% x 200 m = 500 mm.

According to phase 2:
Elastic extension = (W x L) / (E x A) = (10000 x 200000) / (6000 x 615,8) = 540 mm.

According to phase 3:
Thermal expansion = 0,0000125 x L x t = 0,0000125 x 200 x 20 = 50 mm.

Total extension = 500 mm + 540 mm + 5+ mm = 1090 mm

Definitions of Breaking Load

Minimum breaking load
The Minimum breaking force (minimum breaking load), in kilonewtons, is the lowest breaking strain of the rope when tested to destruction.

Calculated breaking load
The value calculated from the product of the sum of the crossectional metallic areas of all the individual wires in the rope and the tensile strength grade(s) of the wires. The total metallic area is directly proportional to the square of the nominal diameter of the rope. A standard spinning loss factor that results from the twisting of strands and wire is then applied.

Special Wire Ropes

Demands for longer operation life and higher breaking loads have contributed to the development of  "special wire ropes". These are to be used in demanding and tough environments when the ropes are used intensively.
The special wire ropes are often manufactured with high tensile wires and the strands are in many cases compacted to give a larger steel area and consequently a higher breaking load.  This results in an increased working load for a specific rope diameter. Compacting of the rope also results in longer life and therefore a lower life cost.

Some areas of use demand wire ropes with better stability and extra low inner friction. For that purpose ropes are manufactured with a plastic coated steel core.

Special wire ropes can be double parallel which means that both wires and strands lay parallel to each other. This prevents wire cross over which can lead to wire indentations. Special wire ropes have a few things in common: less outer and inner friction, narrow tolerances, more flexible, more rounded and a larger contact surface against sheaves and drums. This results in a longer life in tough working conditions.

Hazardous Conditions

Particularly hazardous conditions including offshore activities, the lifting of persons and lifting of potentially dangerous loads such as molten metals, corrosive materials or fissile materials. In such cases the degree of hazard should be assessed by a competent person and the working load limit adjusted accordingly.
